15 ppr, 30 detents incremental rotary encoder with push switch
Prod. Code:
SEI-ENC008
Prezzo di listino
€10.00
€9.50
(VAT excluded)
Login to find out about quantity discounts.
Calculate Shipping
DELIVERY TIMES (working days)
ITALY / EU
NON-EU
1-2 approximately days
4 approximately days
for more information click here

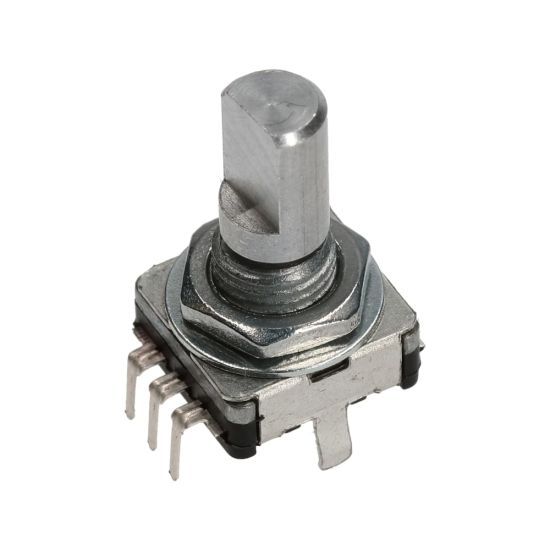

Incremental mechanical rotary encoder, 15 pulses per revolution and 30 detents, with push switch and with flat shaft. Vertical and through hole installation. Adaptable to various electronic devices.
Shaft diameter: 6 mm
Shaft length: 15 mm
Encoder dimensions: 11,8x12x19,5h mm
| Shaft length | 15 mm |
|---|---|
| Detents | 30 |
| Push switch | With |
| Length | 11,8 mm |
| Height | 19,5 mm |
| Width | 12 mm |
| Pulses | 15 |
