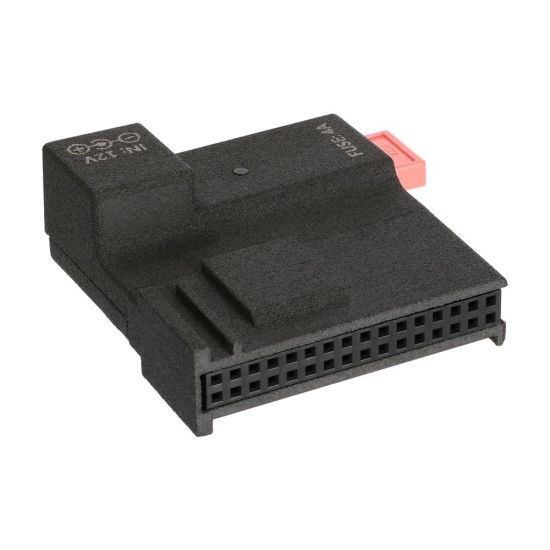

Connector for powering up Audi, Seat, Skoda and Volkswagen instrument clusters

32 pins connector for switching on on a test bench several Magneti Marelli and VDO dashboards, including:

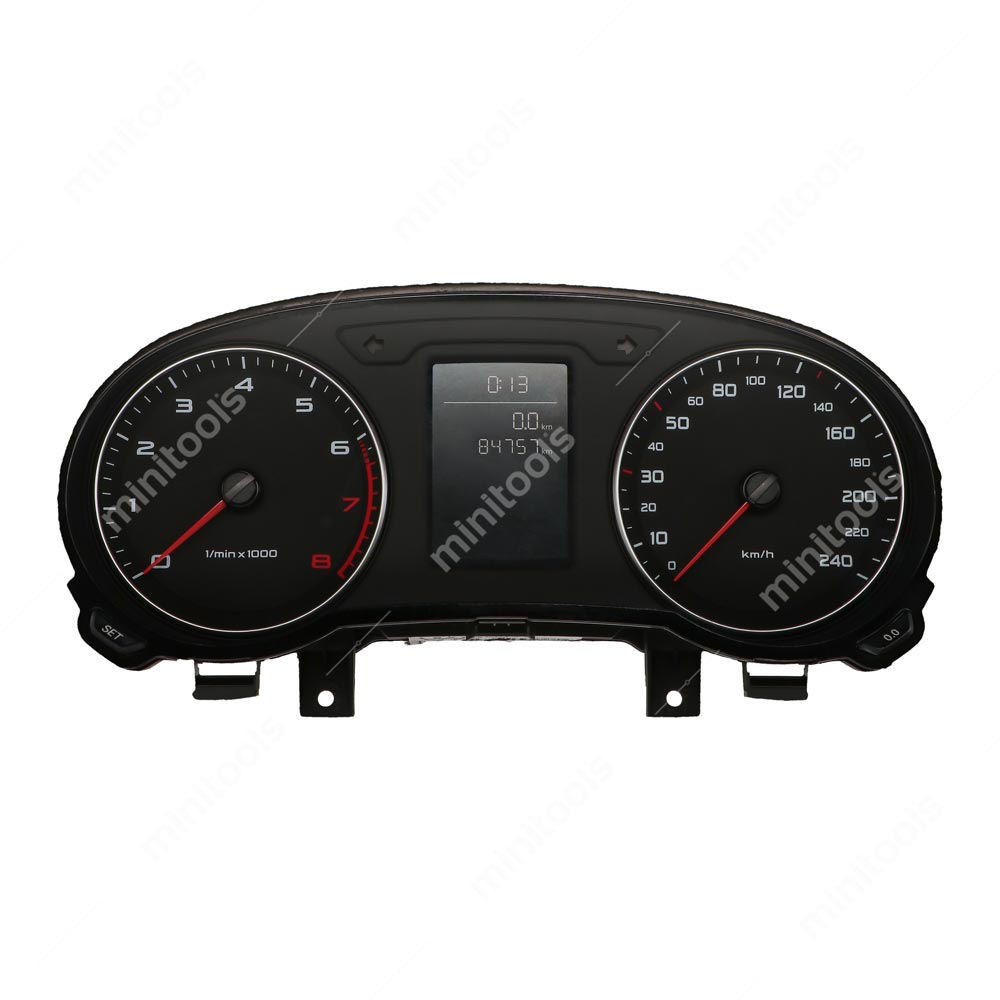

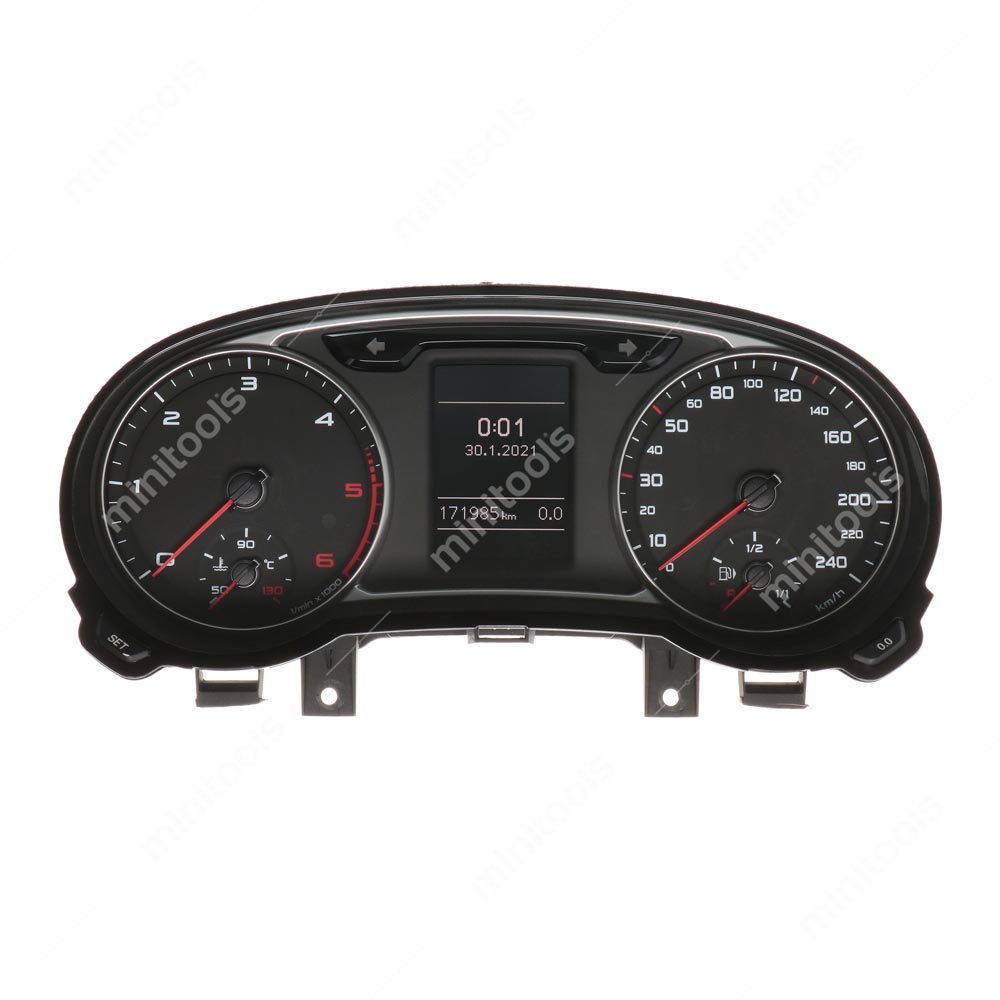

• Audi A1 (models from 2010 to 2018)*;
• Seat Alhambra Mk2 (models from 2010 to 2020);

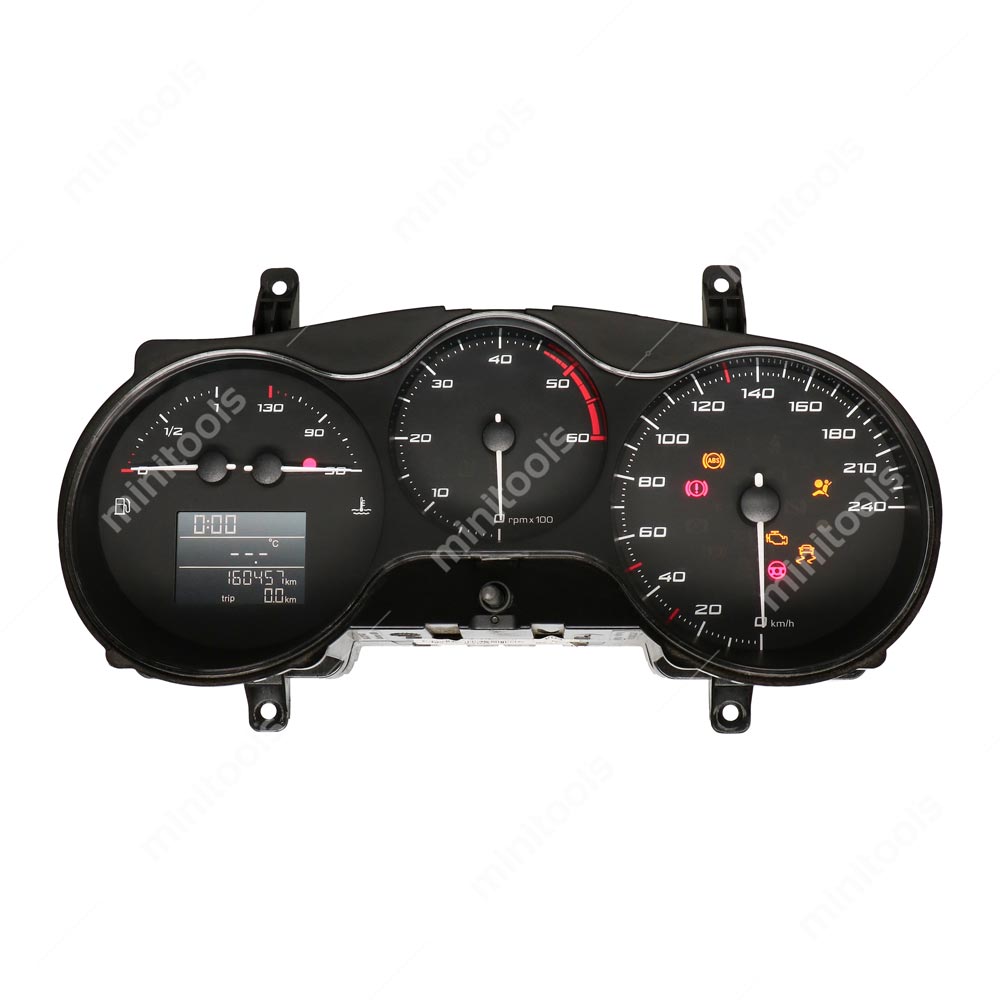

• Seat Altea / Altea XL (post facelift models from 2009 to 2015);

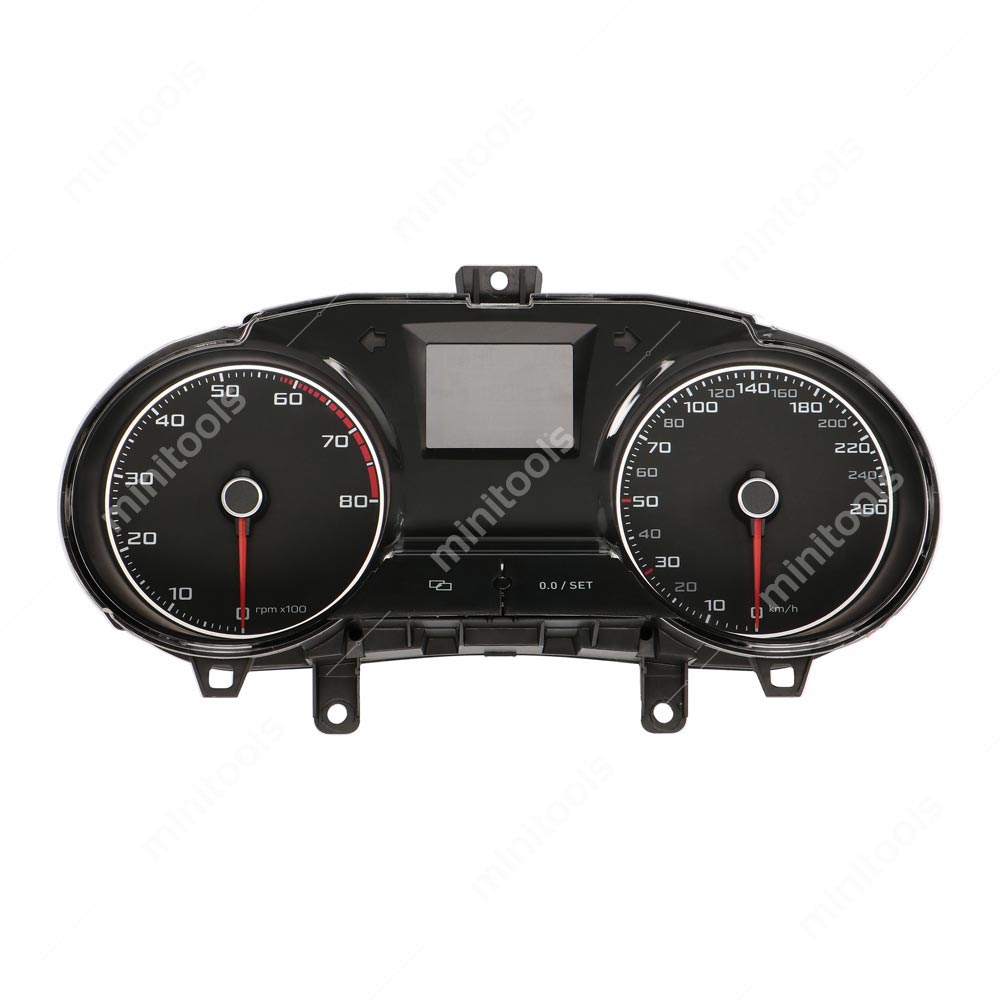

• Seat Ibiza IV (pre-facelift models from 2008 to 2015);
• Seat Leon II (post facelift models from 2009 to 2012);
• Skoda Citigo (models since 2011);
• Skoda Octavia Mk2 (post facelift models from 2008 to 2013);

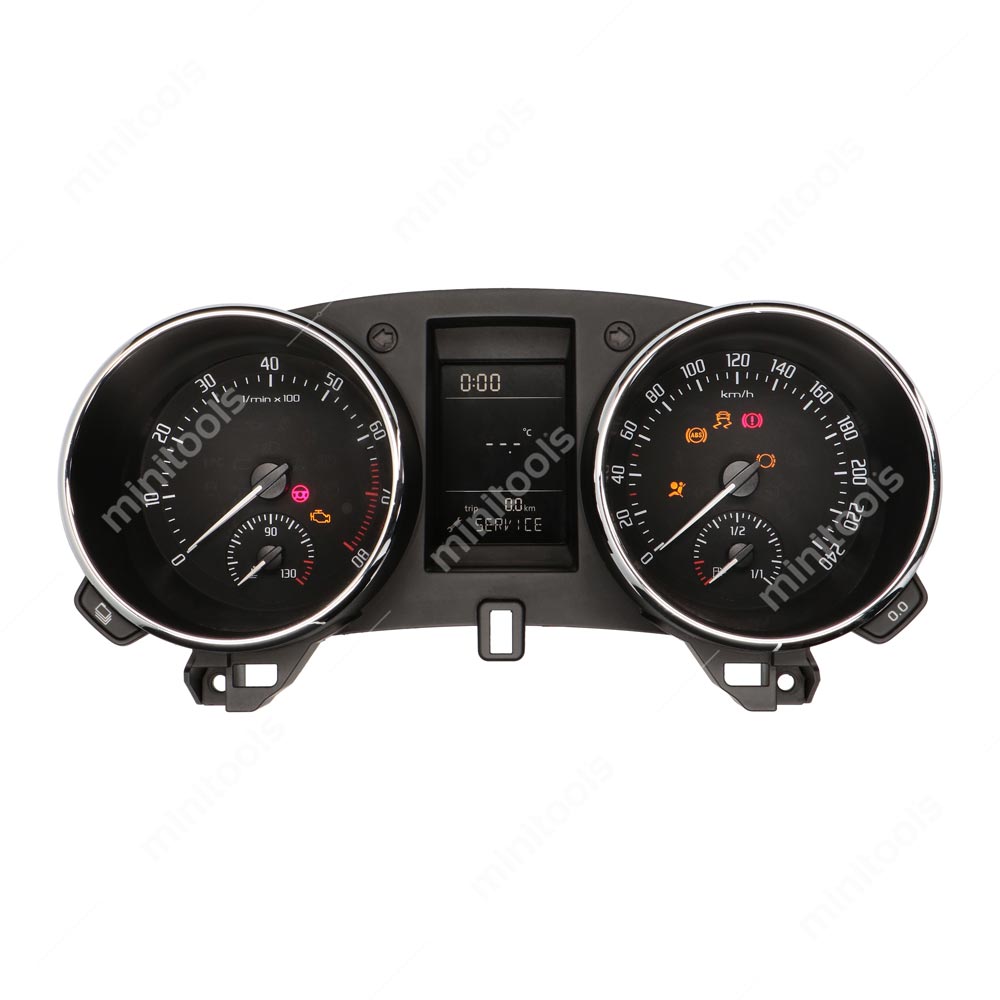

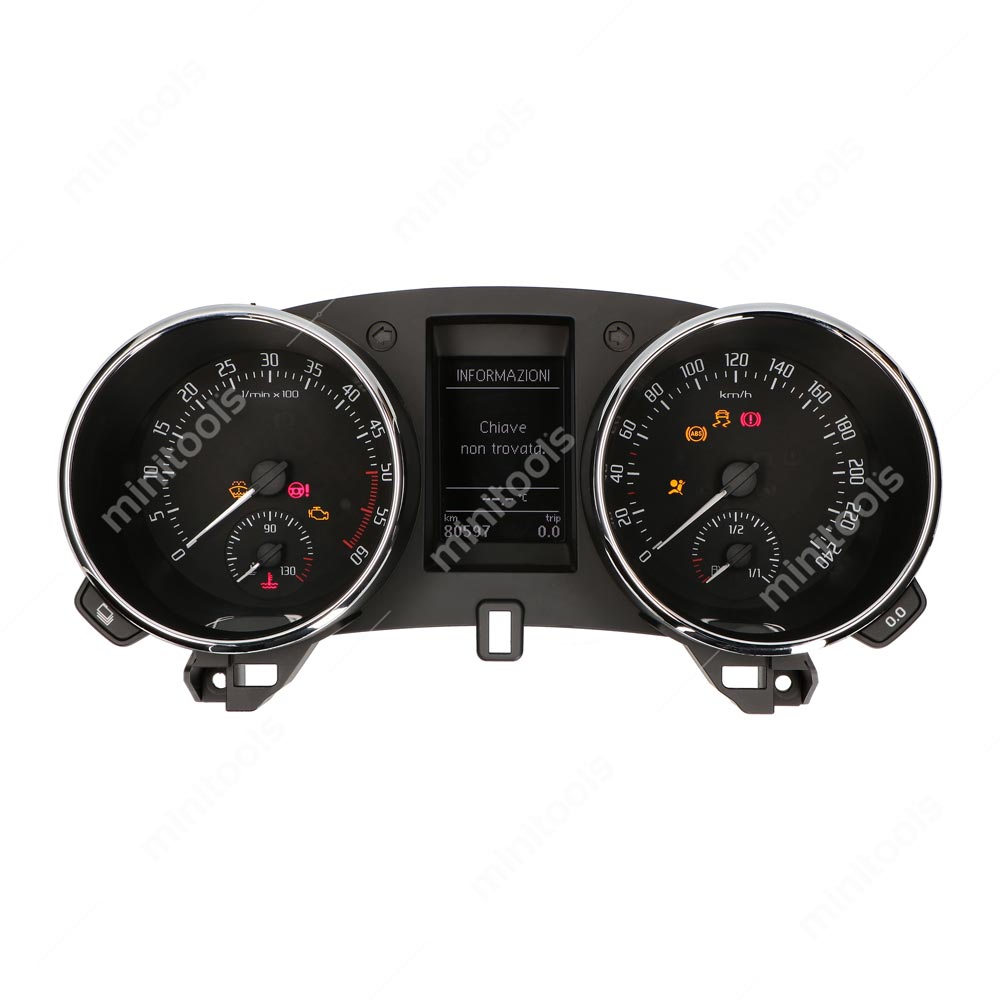

• Skoda Yeti (models from 2009 to 2017).

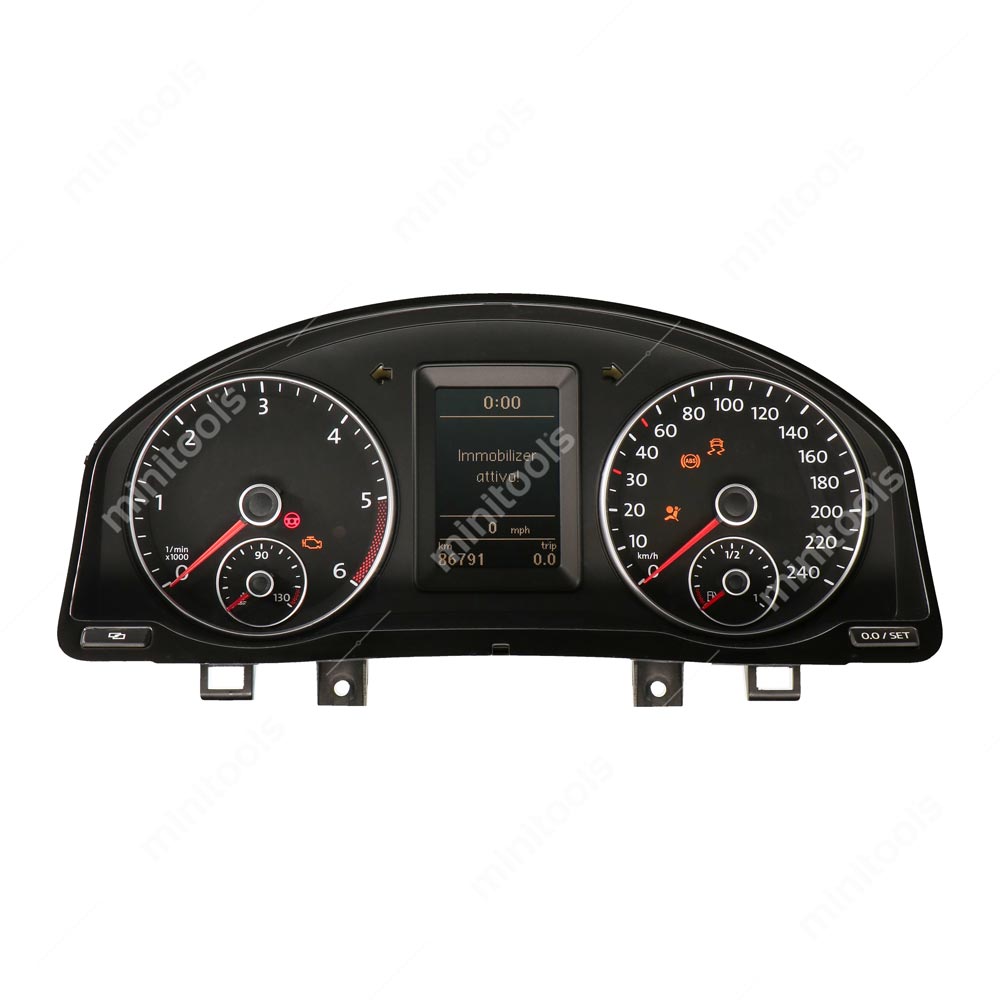

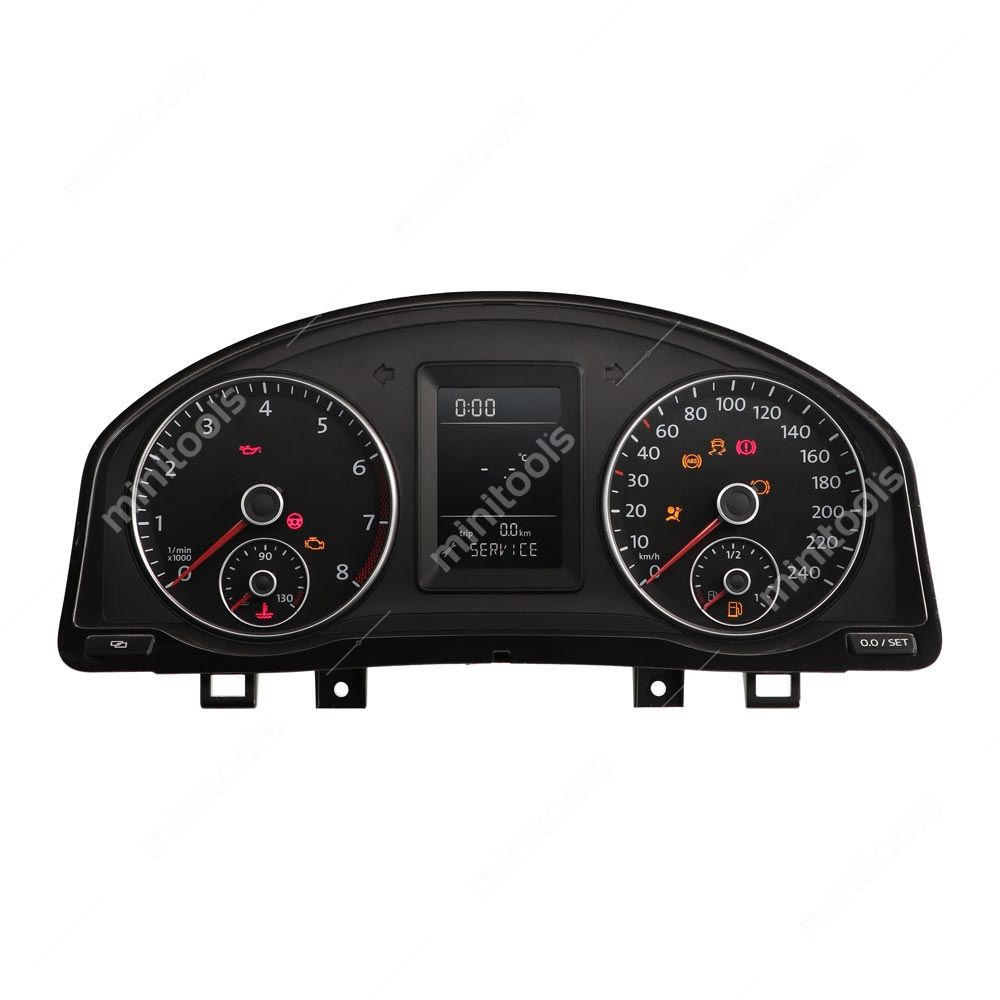

• Volkswagen CrossGolf (post facelift models from 2008 to 2013);

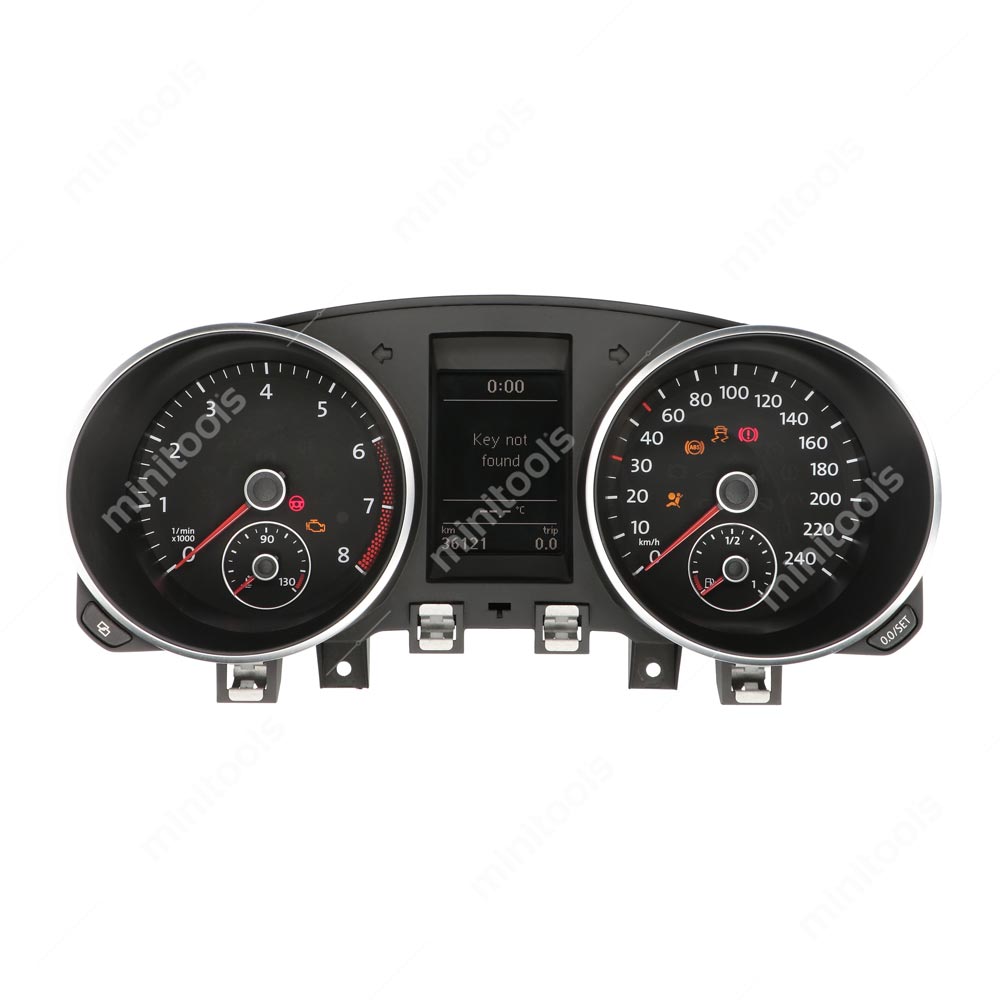

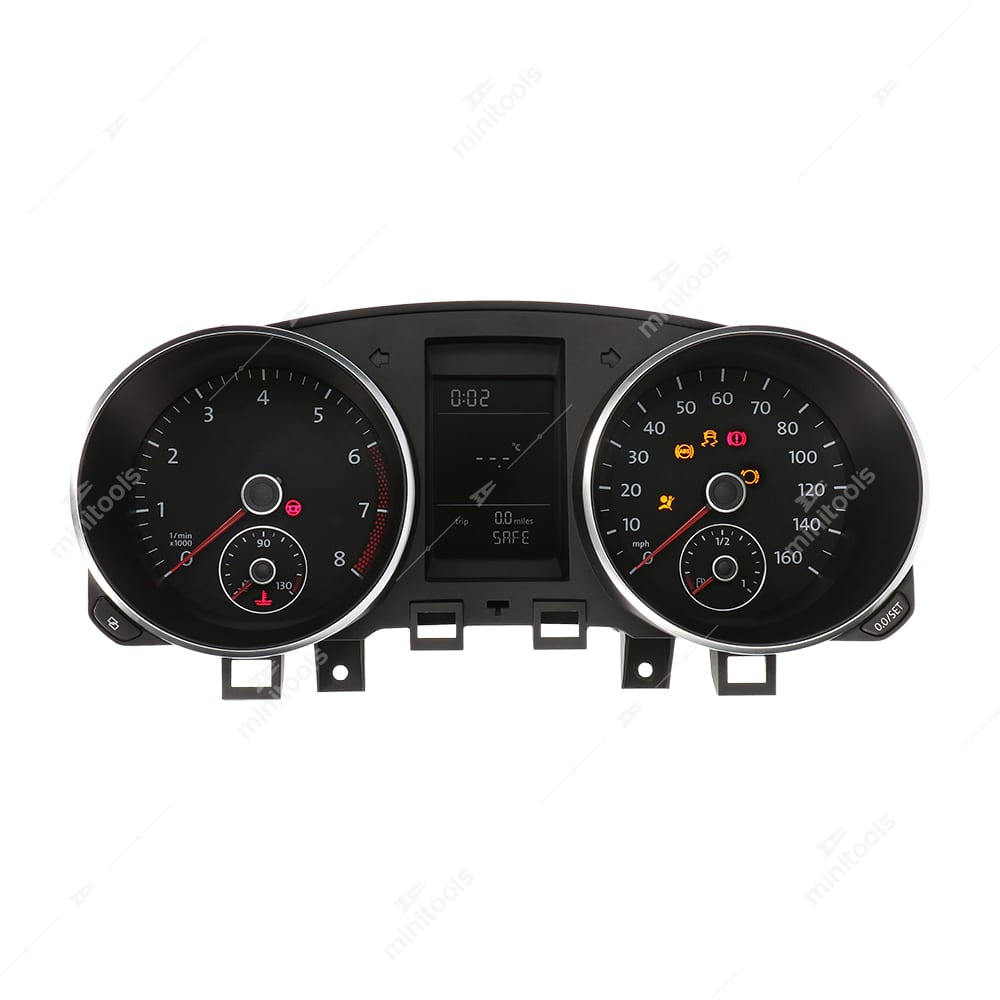

• Volkswagen Golf VI (models from 2008 to 2016);
• Volkswagen Golf Plus (post facelift models from 2008 to 2013);

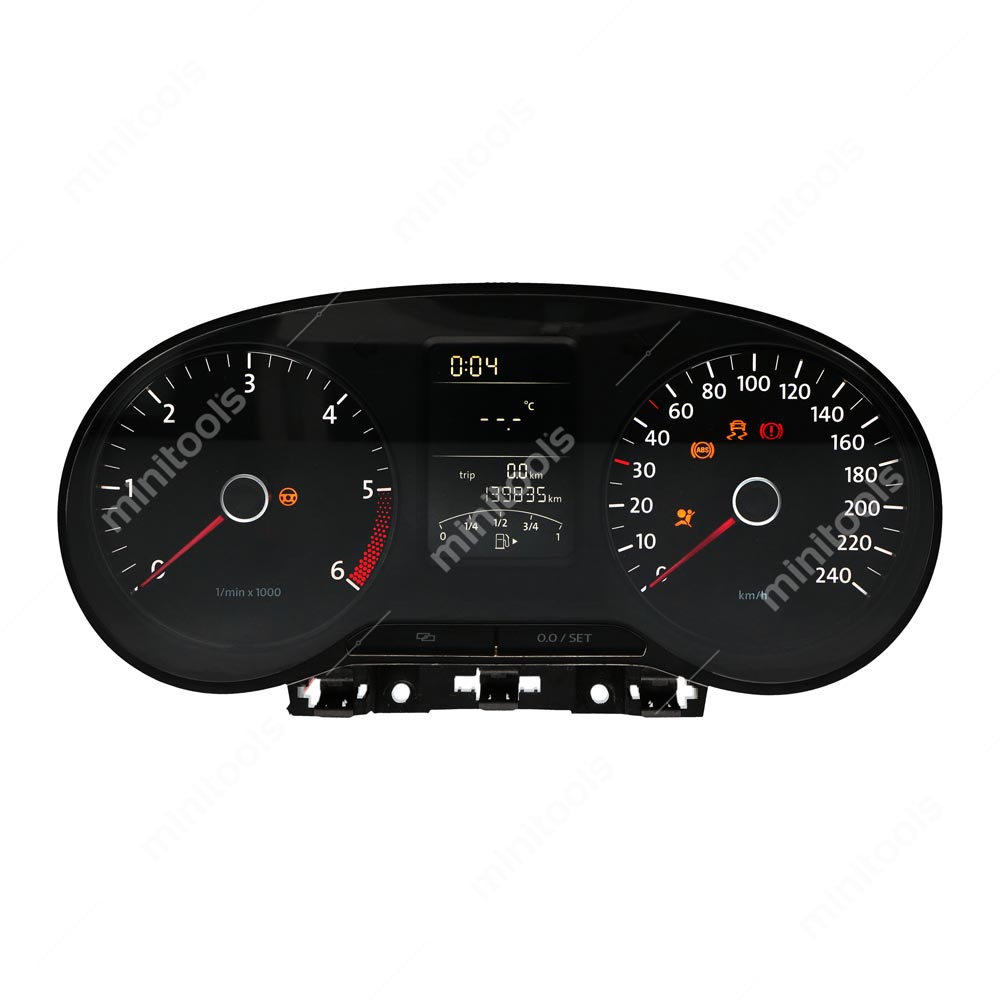

• Volkswagen Polo Mk5 6R (models from 2009 to 2014);
• Volkswagen Scirocco III (models from 2008 to 2017);
• Volkswagen Sharan Mk2 (models since 2010);
• Volkswagen Up (models since 2011).

Usage: plug the SEP-PA005 into the connector on the rear side of the instrument cluster and supply 12V power.

*Note: to switch on Audi A1 instrument clusters, press the "SET" button on the front side after plugging the connector and supplying power.

TECHNICAL FEATURES:

Power supply voltage: 12VDC (SEI-12V5A-21 12V 5A power supply available separately)

Fuse: 4A

Dimensions: 49,5x45,5x19,5mm
