Connector for powering up Citroën, Opel, Peugeot and Vauxhall instrument clusters

Connector for switching on on a test bench several dashboards, including:

• Citroën Berlingo III (models since 2018);
• Citroën C3 III (models since 2016);

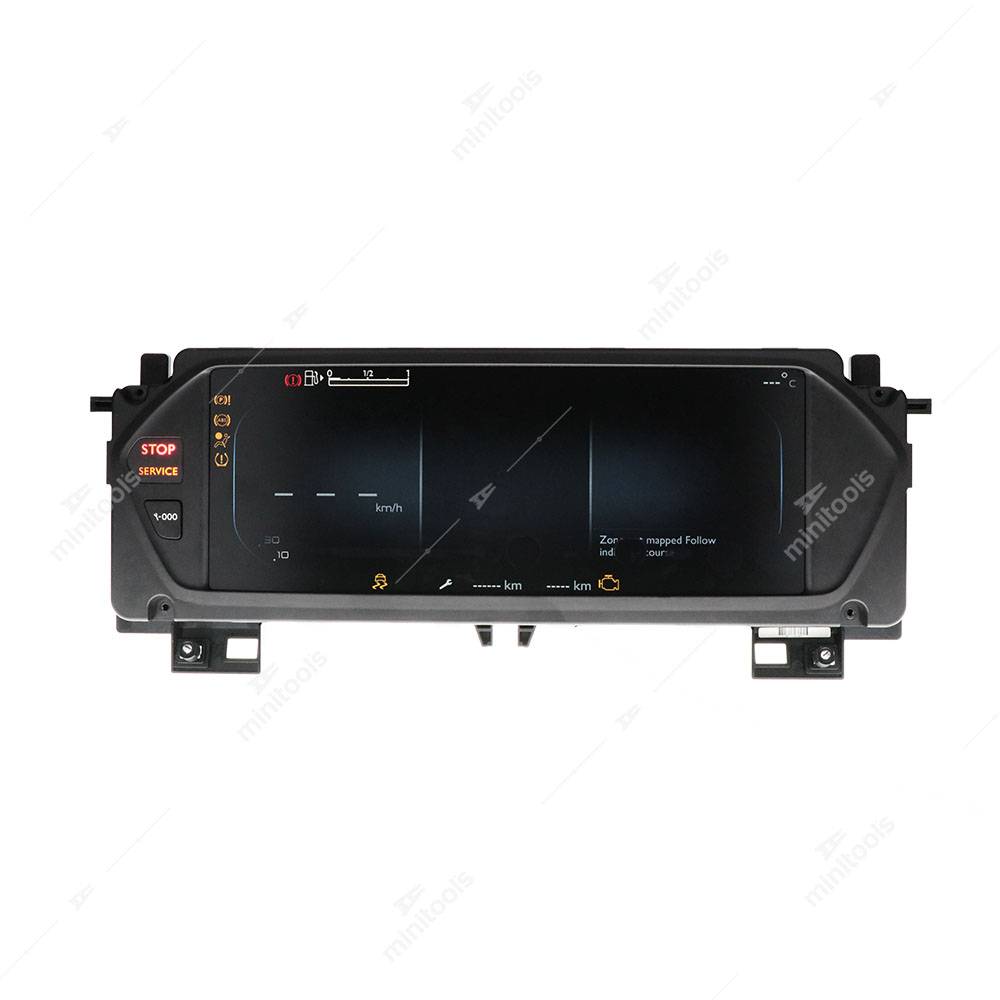

• Citroën C4 Picasso II (models from 2013 to 2018);
• Citroën Grand C4 Picasso II (models from 2013 to 2018);

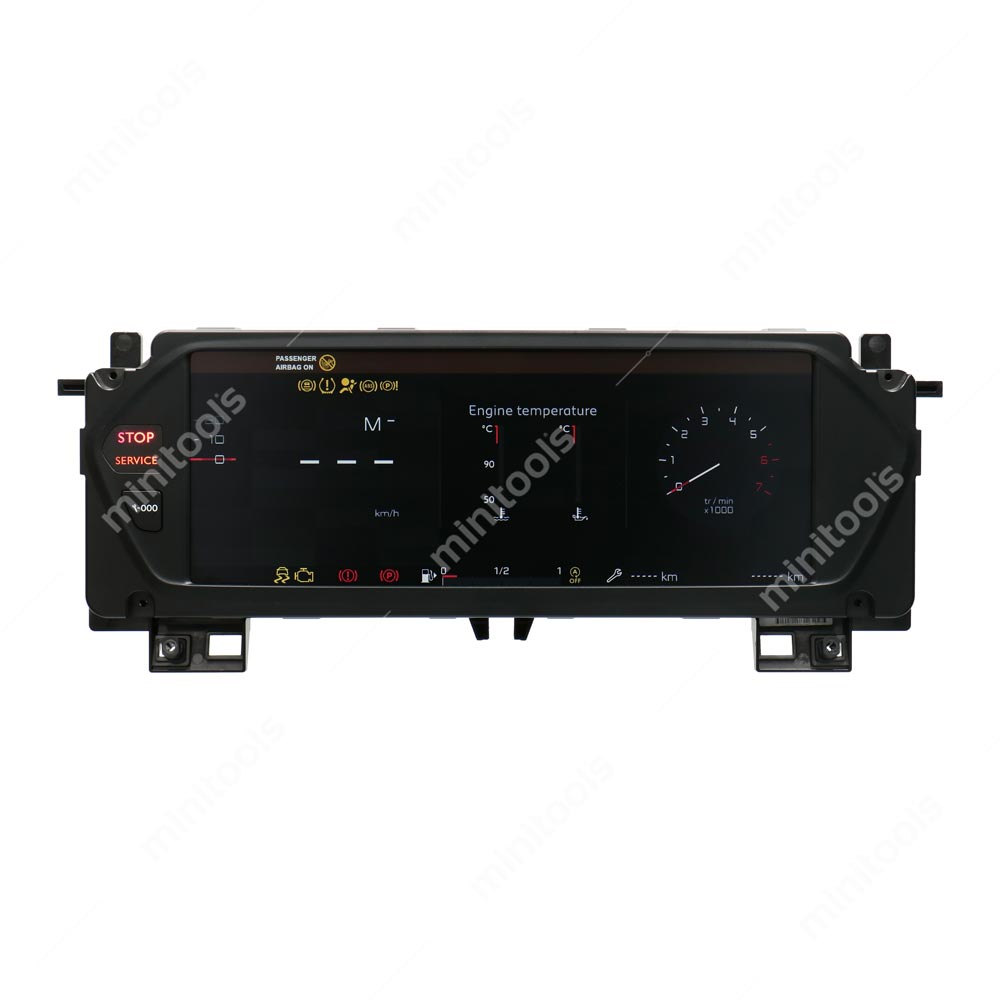

• Citroën C4 Spacetourer (models from 2018 to 2020);
• Citroën Grand C4 Spacetourer (models from 2018 to 2022);
• Opel Corsa F (models since 2019);
• Opel Crossland X (modelli from 2017 to 2020);
• Opel Crossland (models from 2020 to 2024);
• Peugeot 308 Mk2 (models from 2013 to 2021);
• Peugeot 508 Mk1 (models from 2010 to 2018);

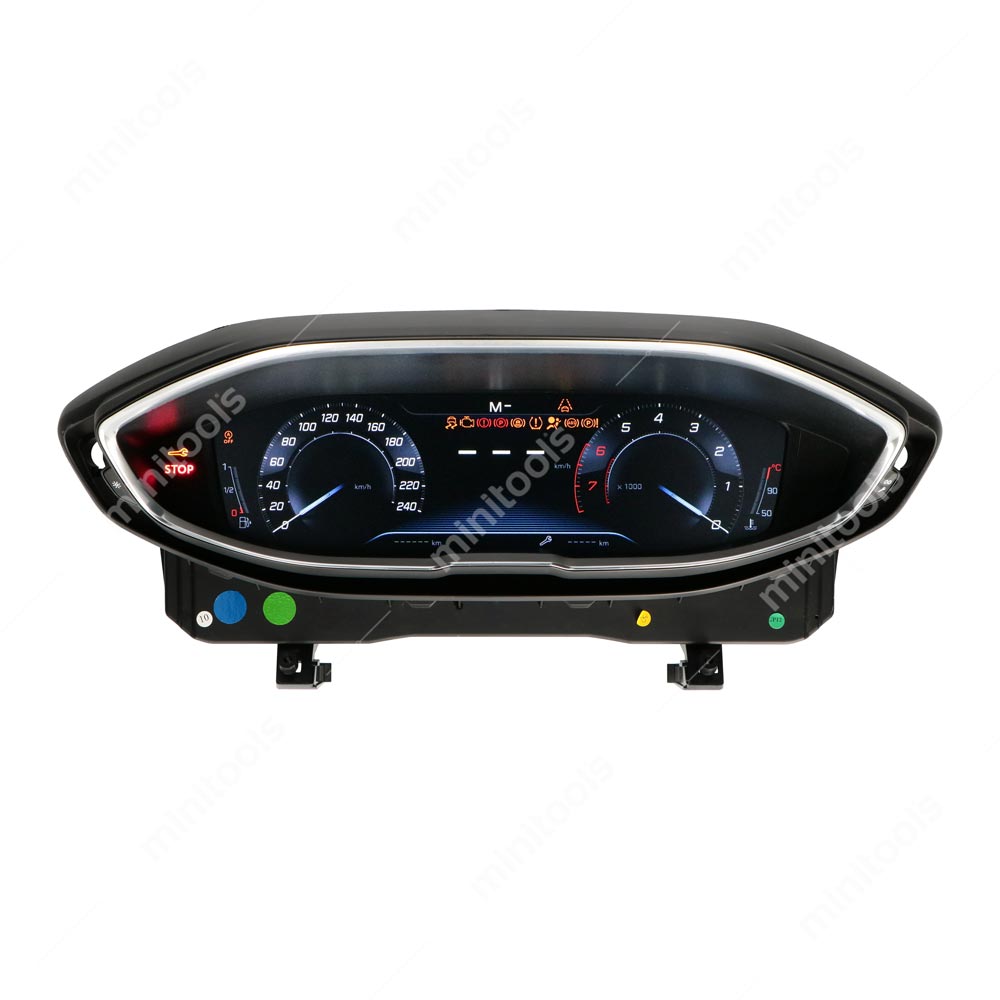

• Peugeot 3008 Mk2 (models from 2016 to 2024);
• Peugeot 5008 Mk2 (models from 2016 to 2024);
• Vauxhall Corsa Mk5 (models since 2019);
• Vauxhall Crossland X (models from 2017 to 2020);
• Vauxhall Crossland (models from 2020 to 2024).

Usage: plug the SEP-PA008 into the connector on the rear side of the instrument cluster and supply 12V power.

TECHNICAL FEATURES:

Power supply voltage: 12VDC (SEI-12V5A-21 12V 5A power supply available separately)

Fuse: 4A
