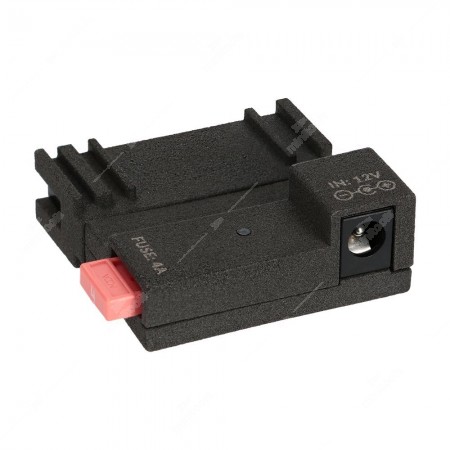

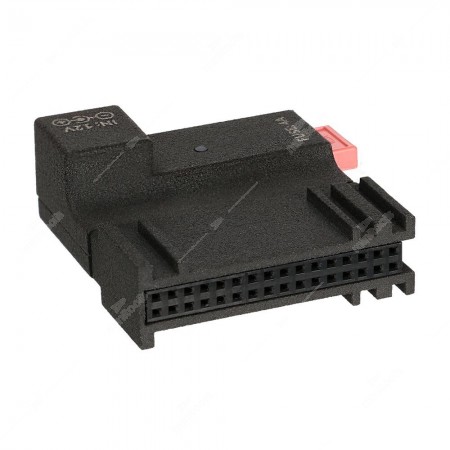

Connector for powering up Ford Focus, C-Max, S-Max, Galaxy, Kuga, Mondeo instrument clusters

32 pins connector for switching on on a test bench several Visteon dashboards, including:

• Ford Focus Mk2 (post facelift models from 2007 to 2011);
• Ford C-Max Mk1 (post facelift models from 2007 to 2010);
• Ford S-Max (models from 2006 to 2014);
• Ford Galaxy Mk2 (models from 2006 to 2015);
• Ford Kuga Mk1 (models from 2008 to 2012);
• Ford Mondeo Mk4 (models from 2007 to 2014).

Usage: plug the SEP-PA006 into the connector on the rear side of the instrument cluster and supply 12V power.

TECHNICAL FEATURES:

Power supply voltage: 12VDC (SEI-12V5A-21 12V 5A power supply available separately)

Fuse: 4A

Dimensions: 50x45,5x20,5mm
