LCD display for Mercedes A-Class and B-Class instrument clusters

Cod. Product Code: SEPDISP08-7V

Regular Price: €72.00

Prezzo Speciale €68.40

(VAT excluded)

Log in to find out about quantity discounts.

Dispatched from and sold by Savix srlu
Shipping costs calculation

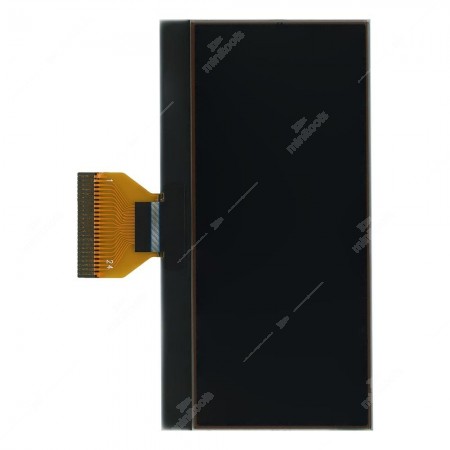

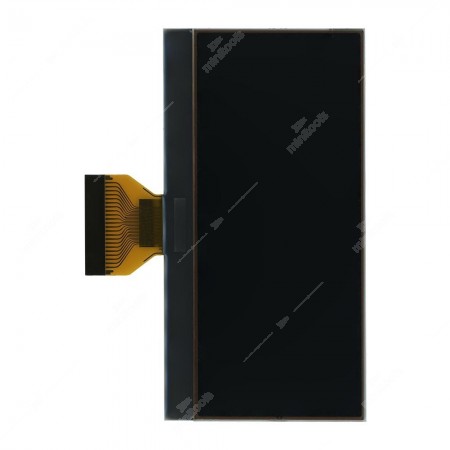

64x164 pixel LCD display, with FPC, adaptable to the following dashboards:

  • Mercedes A-Class W169 / C169 (models from 2004 to 2012);
  • Mercedes B-Class W245 (models from 2005 to 2011).



Need not be soldered to the board but press-fitted to a dedicated connector.



Dimensions: 50x97mm



Notes: After replacing the display, you may need to optimise it by modifying the EEPROM parameters using a programmer.

DOWNLOAD

THE INSTALLATION INSTRUCTIONS

Click to open

Additional Information

EAN code8056590270073
Product brandMinitools
Producer codeSEPDISP08-7V
Pixel64x164
Length50 mm
Height97 mm
Pin24
TypologyMonochrome
ApplicationOn-board computer, Instrument cluster

Mercedes A-Class W169 / C169 (form 2004 to 2012):
0263643042 / 0 263 643 042
0263643044 / 0 263 643 044
0263643048 / 0 263 643 048
0263643147 / 0 263 643 147
0263643153 / 0 263 643 153
0263643160 / 0 263 643 160
0263643162 / 0 263 643 162
0263643163 / 0 263 643 163
0263643180 / 0 263 643 180
0263643186 / 0 263 643 186
0263643193 / 0 263 643 193
0263643195 / 0 263 643 195
0263643197 / 0 263 643 197
0263643213 / 0 263 643 213
0263643219 / 0 263 643 219
0263643241 / 0 263 643 241
0263643337 / 0 263 643 337
0263643338 / 0 263 643 338
0263643365 / 0 263 643 365
0263643371 / 0 263 643 371
0263643400 / 0 263 643 400
0263643406 / 0 263 643 406
0263643407 / 0 263 643 407
0263643413 / 0 263 643 413
0263643419 / 0 263 643 419
A1694400211 / A 169 440 02 11
A1694400811 / A 169 440 08 11
A1694400911 / A 169 440 09 11
A1694401911 / A 169 440 19 11
A1694403111 / A 169 440 31 11
A1694403711 / A 169 440 37 11
A1695400248 / A 169 540 02 48
A1695400348 / A 169 540 03 48
A1695400848 / A 169 540 08 48
A1695401247 / A 169 540 12 47
A1695401347 / A 169 540 13 47
A1695401447 / A 169 540 14 47
A1695401847 / A 169 540 18 47
A1695401947 / A 169 540 19 47
A1695402147 / A 169 540 21 47
A1695403748 / A 169 540 37 48
A1695403848 / A 169 540 38 48
A1695404348 / A 169 540 43 48
A1695404747 / A 169 540 47 47
A1695405347 / A 169 540 53 47
A1695406047 / A 169 540 60 47
A1695406247 / A 169 540 62 47
A1695406347 / A 169 540 63 47
A1695408047 / A 169 540 80 47
A1695408647 / A 169 540 86 47
A1695408948 / A 169 540 89 48
A1695409347 / A 169 540 93 47
A1695409547 / A 169 540 95 47
A1695409548 / A 169 540 95 48
A1695409747 / A 169 540 97 47


Mercedes B-Class W245 (from 2005 to 2011):
0263643172 / 0 263 643 172
0263643182 / 0 263 643 182
0263643187 / 0 263 643 187
0263643188 / 0 263 643 188
0263643193 / 0 263 643 193
0263643195 / 0 263 643 195
0263643228 / 0 263 643 228
0263643245 / 0 263 643 245
0263643247 / 0 263 643 247
0263643248 / 0 263 643 248
0263643337 / 0 263 643 337
0263643338 / 0 263 643 338
0263643344 / 0 263 643 344
0263643345 / 0 263 643 345
0263643396 / 0 263 643 396
0263643401 / 0 263 643 401
0263643402 / 0 263 643 402
0263643407 / 0 263 643 407
0263643408 / 0 263 643 408
0263643415 / 0 263 643 415
0263643420 / 0 263 643 420
0263643421 / 0 263 643 421
0263643181 / 0263 643 181
0263643339 / 0263 643 339
A1694400311 / A 169 440 03 11
A1694400411 / A 169 440 04 11
A1694400911 / A 169 440 09 11
A1694401011 / A 169 440 10 11
A1694402411 / A 169 440 24 11
A1694403311 / A 169 440 33 11
A1694403811 / A 169 440 38 11
A1694403911 / A 169 440 39 11
A1695400348 / A 169 540 03 48
A1695400448 / A 169 540 04 48
A1695400748 / A 169 540 07 48
A1695400948 / A 169 540 09 48
A1695401048 / A 169 540 10 48
A1695401348 / A 169 540 13 48
A1695401548 / A 169 540 15 48
A1695401848 / A 169 540 18 48
A1695401911 / A 169 540 19 11
A1695401948 / A 169 540 19 48
A1695403748 / A 169 540 37 48
A1695403848 / A 169 540 38 48
A1695403948 / A 169 540 39 48
A1695404448 / A 169 540 44 48
A1695404548 / A 169 540 45 48
A1695407247 / A 169 540 72 47
A1695407347 / A 169 540 73 47
A1695407647 / A 169 540 76 47
A1695407747 / A 169 540 77 47
A1695408147 / A 169 540 81 47
A1695408247 / A 169 540 82 47
A1695408747 / A 169 540 87 47
A1695408847 / A 169 540 88 47
A1695409347 / A 169 540 93 47
A1695409547 / A 169 540 95 47
A1695409947 / A 169 540 99 47
