LCD display for Skoda Octavia and Volkswagen Passat and Scirocco instrument clusters
Prod. Code:
SEPDISP12C
Prezzo di listino
€93.00
€88.35
(VAT excluded)
Login to find out about quantity discounts.
Calculate Shipping

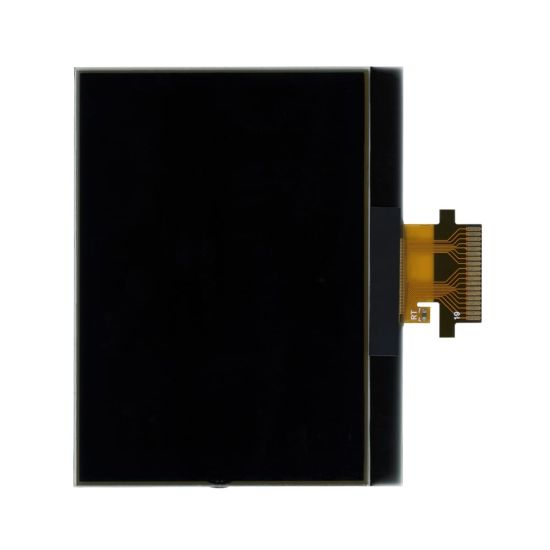

120x176 pixel LCD display, with FPC, adaptable to the following dashboards:
- Skoda Octavia Mk2 (pre-facelift models from 2004 to 2008);
- Volkswagen Scirocco III (models from 2008 to 2010);
- Volkswagen Passat B6 (models from 2005 to 2011).
It doesn't need to be soldered but just inserted in to its dedicated plug.
Dimensions: 67x85mm
NOTE: SEPDISP12C replaces the original display with 1 FPC and of 3,5mm thickness (see gallery). If the original display is 2,00mm thick, it has to be replaced with SEPDISP12; if it has 2 FPCs (CHECK PDF ABOVE) it has to be replaced with SEPDISP31.
| Pin | 19 |
|---|---|
| Pixel | 120x176 |
| Typology | Monochrome |
| Length | 67 mm |
| Height | 85 mm |
| Application | On-board computer, Instrument cluster |
| Producer code | SEPDISP12C |
| EAN code | 8056590274293 |
