LCD display for Ford Focus, C-Max and Kuga instrument clusters

Prod. Code: SEPDISP33
Prezzo di listino €86.00
€81.70
(VAT excluded)

Login to find out about quantity discounts.

PDF

DOWNLOAD

THE INSTALLATION INSTRUCTIONS

Click to open

Calculate Shipping
Where to ship:

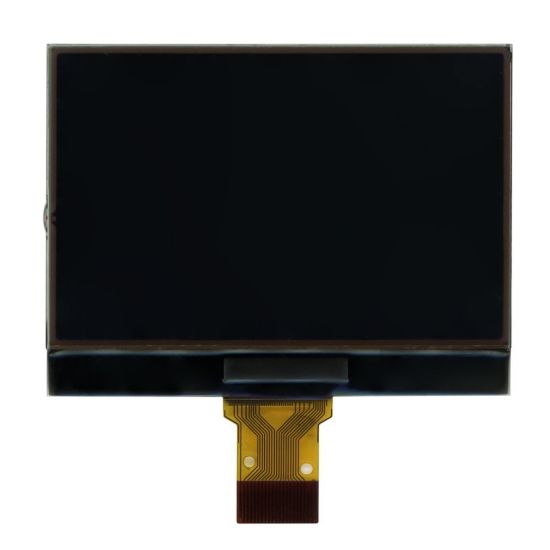

LCD display 124x88 pixel, with FPC, useful to repair the following dashboards:

  • Ford Focus Mk2 (models from 2007 to 2011);
  • Ford C-Max Mk1 (post facelift models from 2007 to 2010);
  • Ford Kuga Mk1 (models from 2008 to 2012).



Doesn't need to be soldered to the board but press-fitted to a dedicated connector.



Dimensions: 65x49mm



Notes: A good level of skill and soldering experience are required to replace the display. For the instrument clusters with larger display, the LCD SEPDISP32 is available.

How to repair Ford instrument clusters with SEPDISP33 display
Additional Information
Pin 22
Pixel 124x88
Typology Monochrome
Length 65 mm
Height 49 mm
Application Instrument cluster
Producer code SEPDISP33
EAN code 8056590270400
