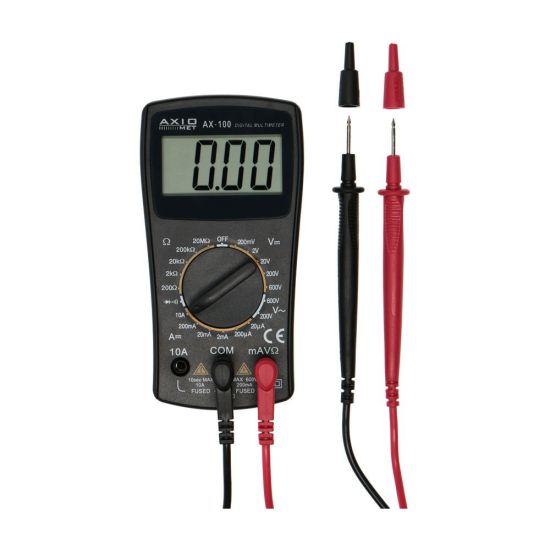

Axiomet AX-100 digital multimeter

Axiomet AX-100 digital multimeter tester, supplied with leads for measurement.

Features:

• Measurement: DC current, resistance, AC voltage, DC voltage;
• Sampling: 3x/s;
• DC voltage measuring range: 0.1...200mV, 2V, 20V, 200V, 600V;
• DC voltage measuring accuracy: ±(0,5% + 4 digits);
• AC voltage measuring range: 100mV...200V, 600V;
• AC voltage measuring accuracy: ±(1,2% + 10 digits);
• DC current measuring range: 0.2mA, 2mA, 20mA, 200mA, 10A;
• DC current measuring accuracy: ±(1,5% + 3 digits);
• Resistance measuring range: 100mΩ...200Ω, 2kΩ, 20kΩ, 200kΩ, 20MΩ;
• Resistance measuring accuracy: ±(0,8% + 5 digits);
• Diode test: 1mA @3V;
• Continuity test: acoustic indication, <70Ω;
• Operating temperature: 0...40°C;
• Dimensions: 85x30x145mm

Power supply: 6F22 9V battery (not included)
