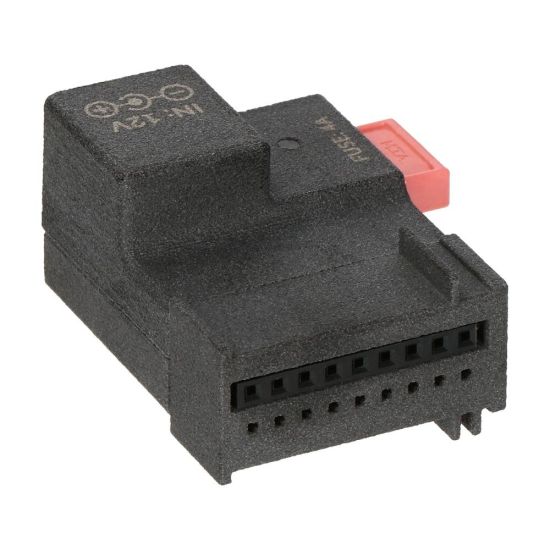

Connector for powering up Alfa Romeo, Fiat and Lancia instrument clusters

Connector for switching on on a test bench several dashboards including:

• Alfa Romeo 8C (models from 2007 to 2010)
  both versions: Alfa Romeo 8C Competizione and Alfa Romeo 8C Spider;
• Alfa Romeo 147 (model from 2000 to 2010);
• Alfa Romeo 159 (models from 2005 to 2012);
• Alfa Romeo Brera (models from 2005 to 2011);
• Alfa Romeo GT (models from 2003 to 2010);
• Alfa Romeo Spider (models from 2006 to 2011);
• Fiat Croma 194 (models from 2005 to 2011);
• Fiat Doblò 223 (Veglia Borletti models from 2000 to 2010);
• Fiat Punto 188 (Veglia Borletti models from 1999 to 2011);
• Fiat Stilo (models from 2001 to 2010);
• Lancia Ypsilon 843 (models from 2003 to 2011).

Usage: plug the SEP-PA026 into the connector on the rear side of the instrument cluster and supply 12V power.

TECHNICAL FEATURES:

Power supply voltage: 12VDC (SEI-12V5A-21 12V 5A power supply available separately)

Fuse: 4A
