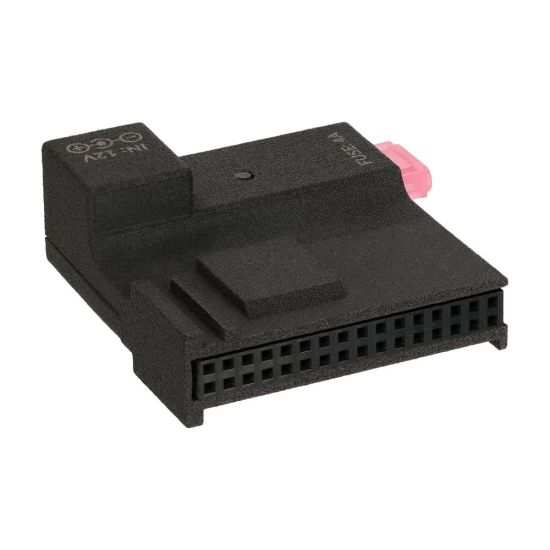

Connector for powering up Audi, Ford, Seat, Skoda and Volkswagen instrument clusters

32 pins connector for switching on on a test bench several Bosch, Jaeger, Moto Meter and VDO dashboards, including:

• Audi A2 8Z (models from 1999 to 2005);
• Audi A3 8L (models from 1996 to 2003);
• Audi S3 8L (models from 1999 to 2003);
• Audi A4 B5 (models from 1994 to 2001);
• Audi S4 B5 / 8D (models from 1997 to 2001);
• Audi RS4 B5 / 8D (models from 1999 to 2001);
• Audi A6 C5 (models from 1997 to 2005);
• Audi S6 C5 / 4B (models from 1999 to 2003);
• Audi RS6 / 4B (models from 2002 to 2004);
• Audi TT 8N (models from 1998 to 2006);
• Ford Galaxy Mk1 (models from 1995 to 2006);

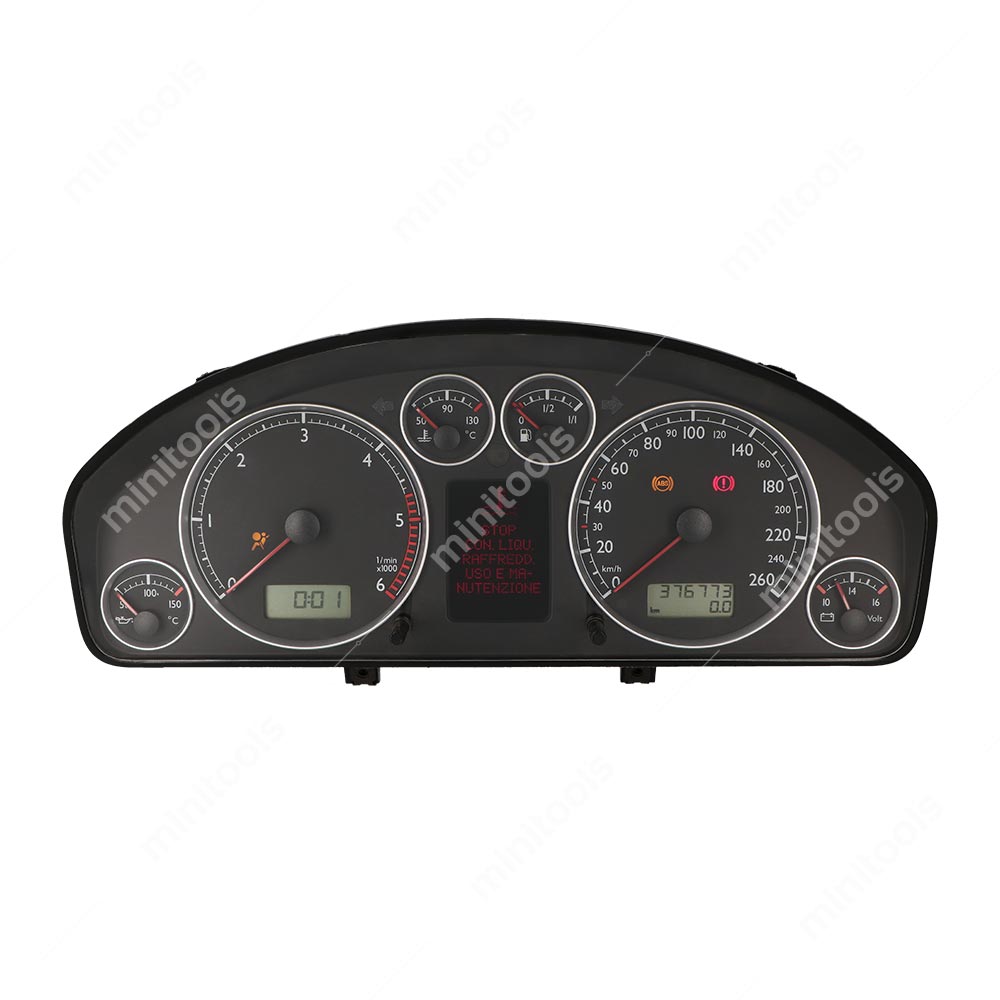

• Seat Alhambra Mk1 (models from 1996 to 2010);
• Seat Arosa (models from 1997 to 2004);
• Seat Cordoba Mk1 (post facelift models from 1999 to 2002);
• Seat Ibiza Mk2 (post facelift models from 1999 to 2002);
• Seat Leon Mk1 (models from 1999 to 2005);
• Seat Toledo Mk2 (models from 1998 to 2004);

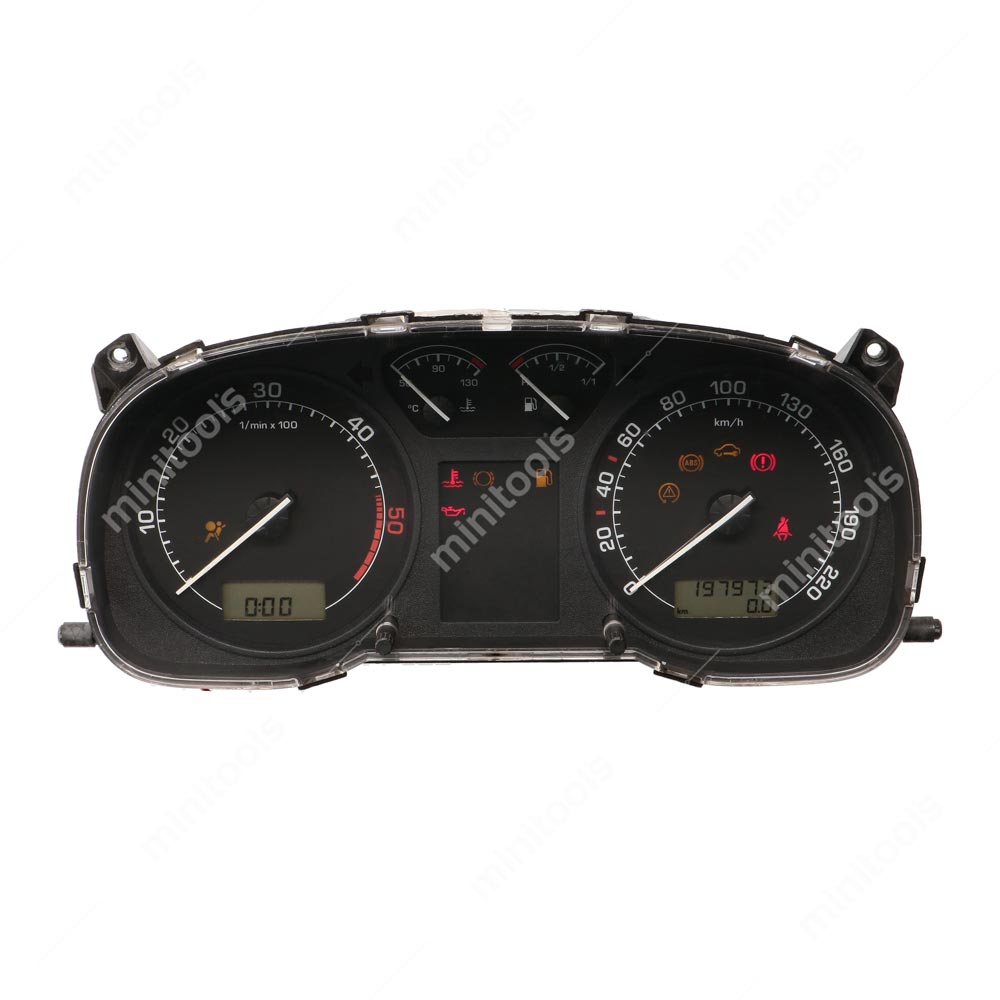

• Skoda Octavia Mk1 (models from 1996 to 2010);
• Volkswagen Bora (models from 1998 to 2005);
• Volkswagen Golf IV (models from 1997 to 2006);
• Volkswagen Lupo (models from 1998 to 2005);
• Volkswagen Passat B5 (models from 1996 to 2001);
• Volkswagen Passat B5.5 (models from 2000 to 2005);
• Volkswagen Sharan Mk1 (models from 1995 to 2010);
• Volkswagen Caravelle T4 (models from 1998 to 2003);
• Volkswagen Eurovan T4 (models from 1998 to 2003);
• Volkswagen Multivan T4 (models from 1998 to 2003);
• Volkswagen Transporter T4 (models from 1998 to 2003);
• Volkswagen Vanagon T4 (models from 1998 to 2003);
• Volkswagen Westfalia California T4 (models from 1998 to 2003);
• Volkswagen Westfalia Multivan T4 (models from 1998 to 2003);
• Volkswagen California T5 (models from 2003 to 2009);
• Volkswagen Caravelle T5 (models from 2003 to 2009);
• Volkswagen Kombi T5 (models from 2003 to 2009);
• Volkswagen Multivan T5 (models from 2003 to 2009);
• Volkswagen Shuttle T5 (models from 2003 to 2009);
• Volkswagen Transporter T5 (models from 2003 to 2009).

Usage: plug the SEP-PA003 into the blue connector on the rear side of the instrument cluster and supply 12V power.

TECHNICAL FEATURES:

Power supply voltage: 12VDC (SEI-12V5A-21 12V 5A power supply available separately)

Fuse: 4A

Dimensions: 49x45,5x19,5mm
