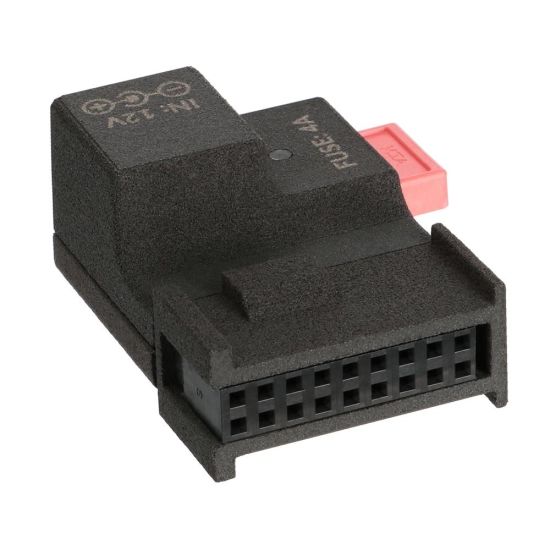

Connector for powering up BMW 1 Series, 3 Series, 5 Series and X5 instrument clusters

18 pins connector for switching on on a test bench several Bosch, Jaeger, Moto Meter and VDO dashboards, including:

• BMW 1 Series E81 (models from 2006 to 2011);
• BMW 1 Series E82 (models from 2006 to 2013);
• BMW 1 Series E87 (models from 2003 to 2013);
• BMW 1 Series E88 (models from 2008 to 2013);
• BMW 3 Series E90 (models from 2004 to 2011);
• BMW 3 Series E91 (models from 2004 to 2012);
• BMW 3 Series E92 (models from 2005 to 2013);
• BMW M3 E90 (models from 2007 to 2011);
• BMW M3 E92 (models from 2007 to 2013);
• BMW M3 E93 (models from 2007 to 2013);
• BMW 3 Series E93 (models from 2006 to 2013);
• BMW 5 Series E60 (models from 2001 to 2010);
• BMW 5 Series E61 (models from 2004 to 2010);
• BMW M5 E60 (models from 2004 to 2010);
• BMW M5 E61 (models from 2007 to 2010);
• BMW X5 E70 (models from 2006 to 2013);
• BMW X5 M E70 (models from 2009 to 2013).

Usage: plug the SEP-PA004 into the connector on the rear side of the instrument cluster, supply 12V power and press the button on the front side of the cluster.

Note: powering up the instrument clusters with the SEP-PA004, only the LCD display will switch on.

TECHNICAL FEATURES:

Power supply voltage: 12VDC (SEI-12V5A-21 12V 5A power supply available separately)

Fuse: 4A

Dimensions: 36,5x32,5x19mm
