Connector for powering up Mercedes instrument clusters

Connector for switching on on a test bench several Mercedes dashboards, including:

• Maybach 57 / 62 (models from 2002 to 2012);
• Mercedes A-Class W169 / C169 (models from 2004 to 2012);
• Mercedes B-Class W245 (models from 2005 to 2011);

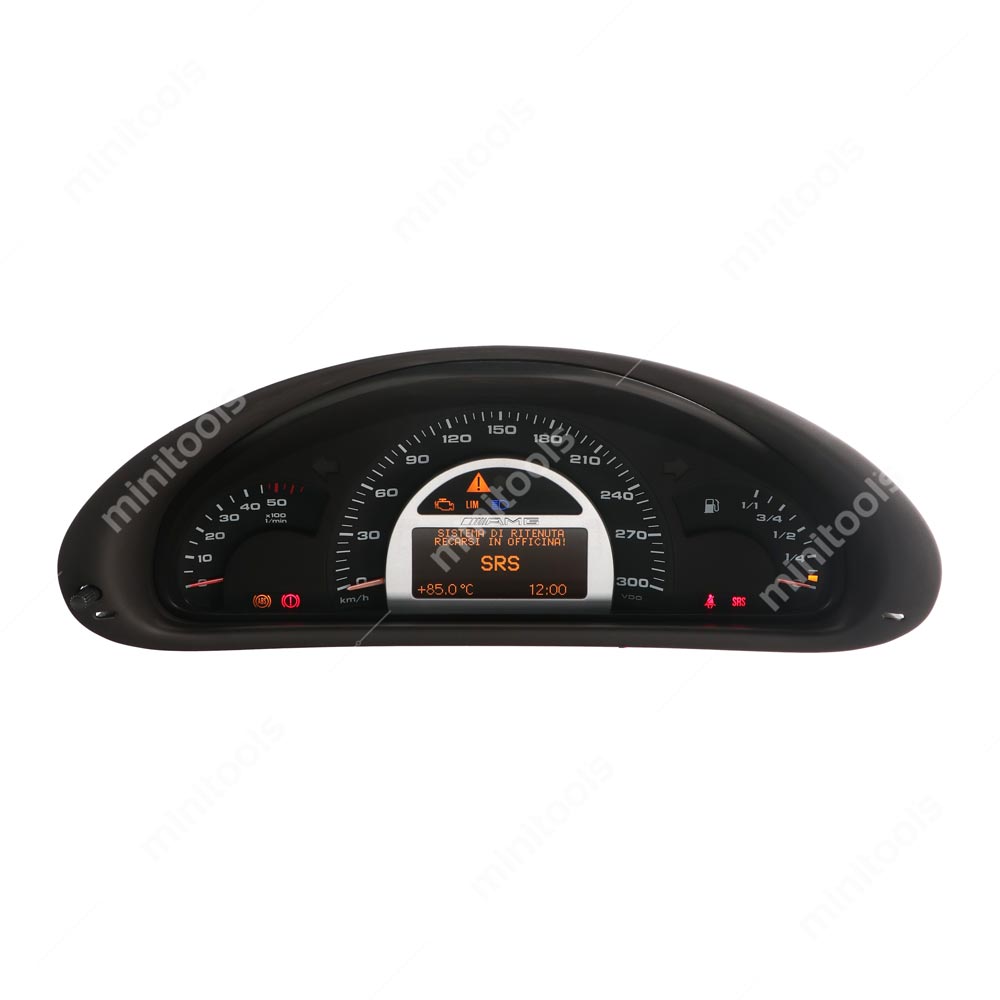

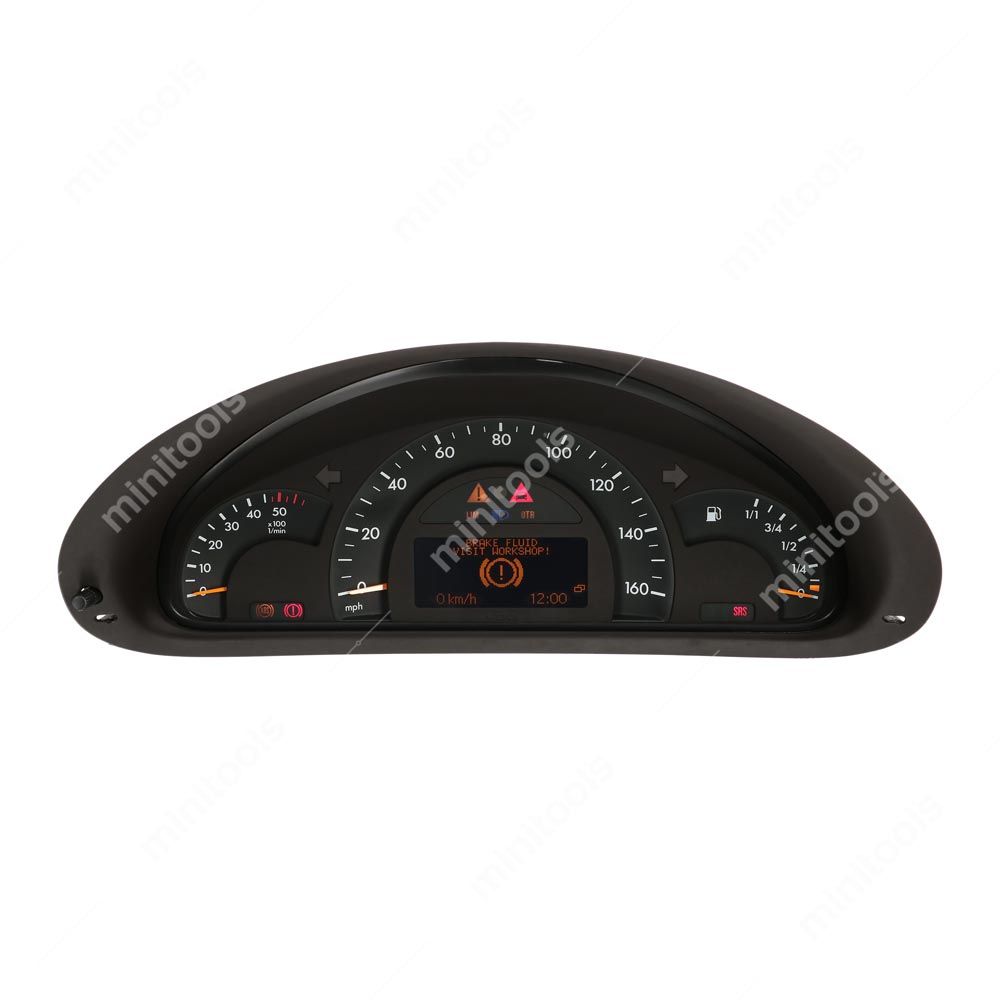

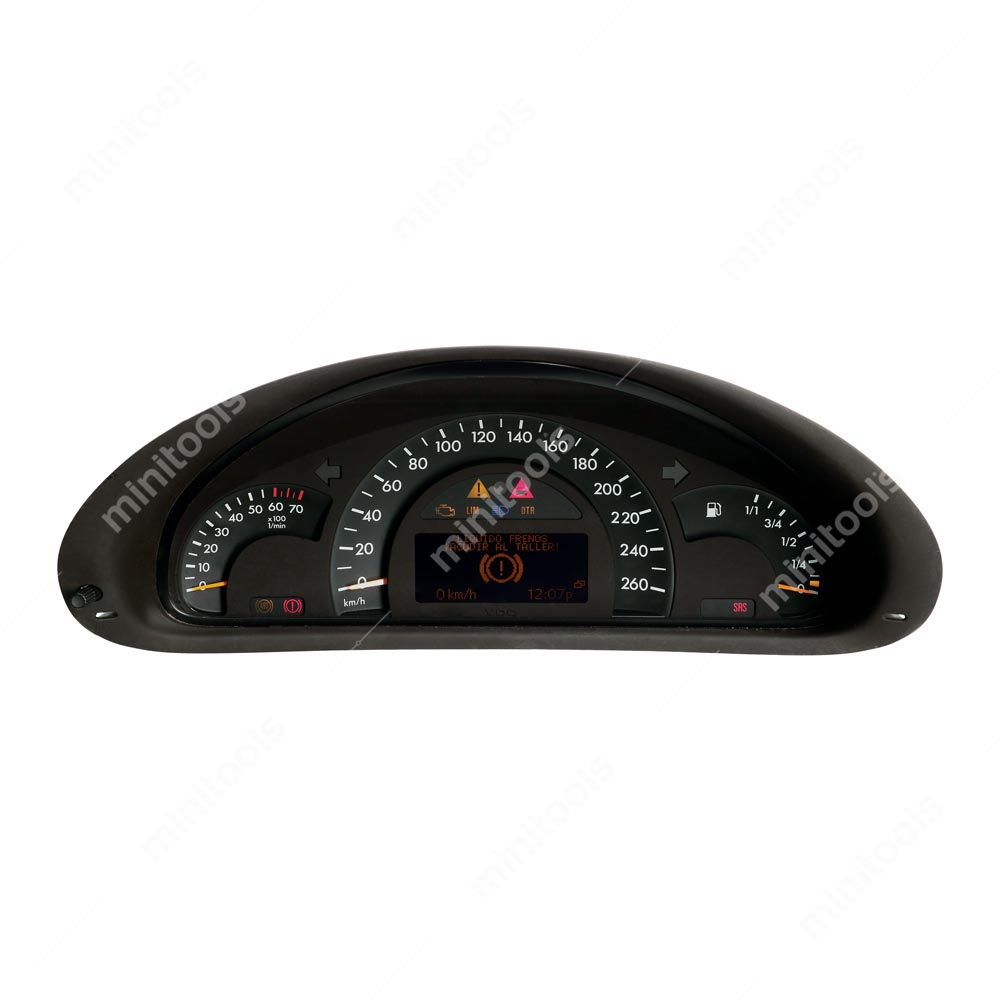

• Mercedes C-Class W203 (models from 2000 to 2007);
• Mercedes C-Class S203 (models from 2001 to 2007);

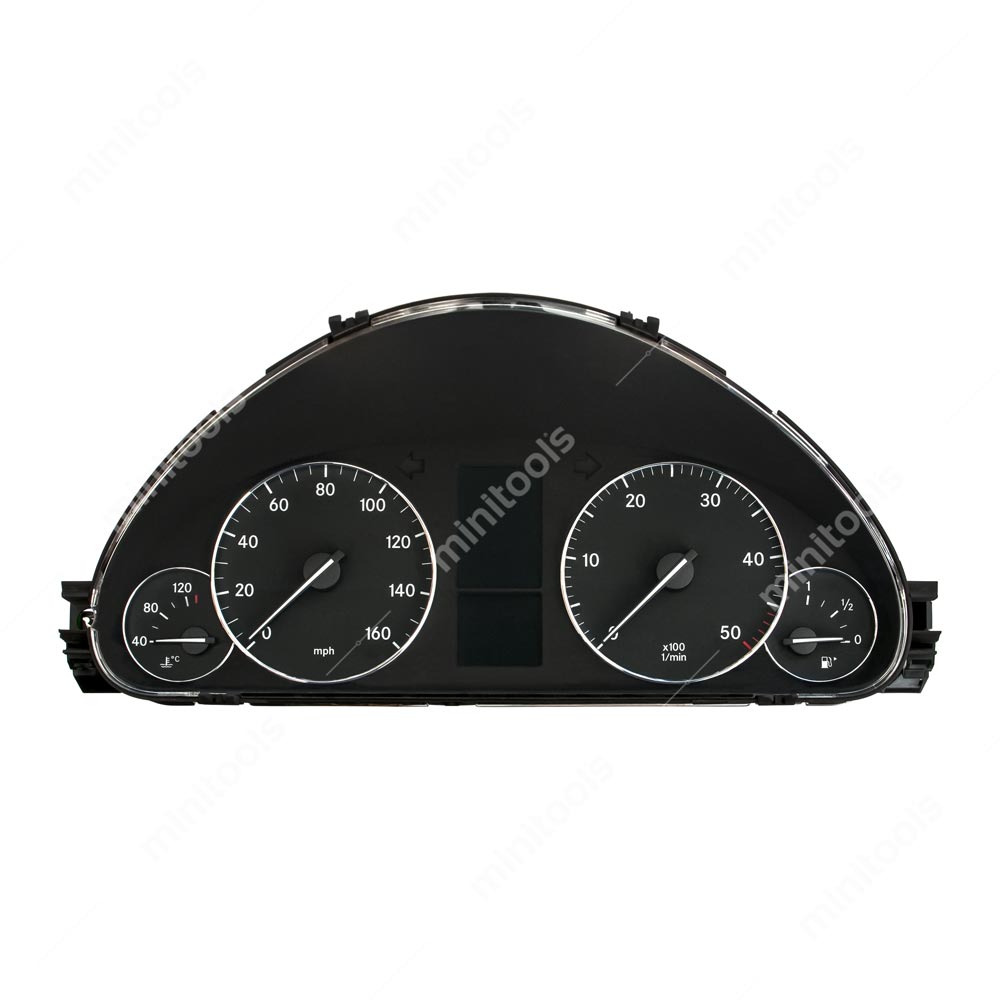

• Mercedes C-Class SportCoupé CL203 (models from 2000 to 2008);

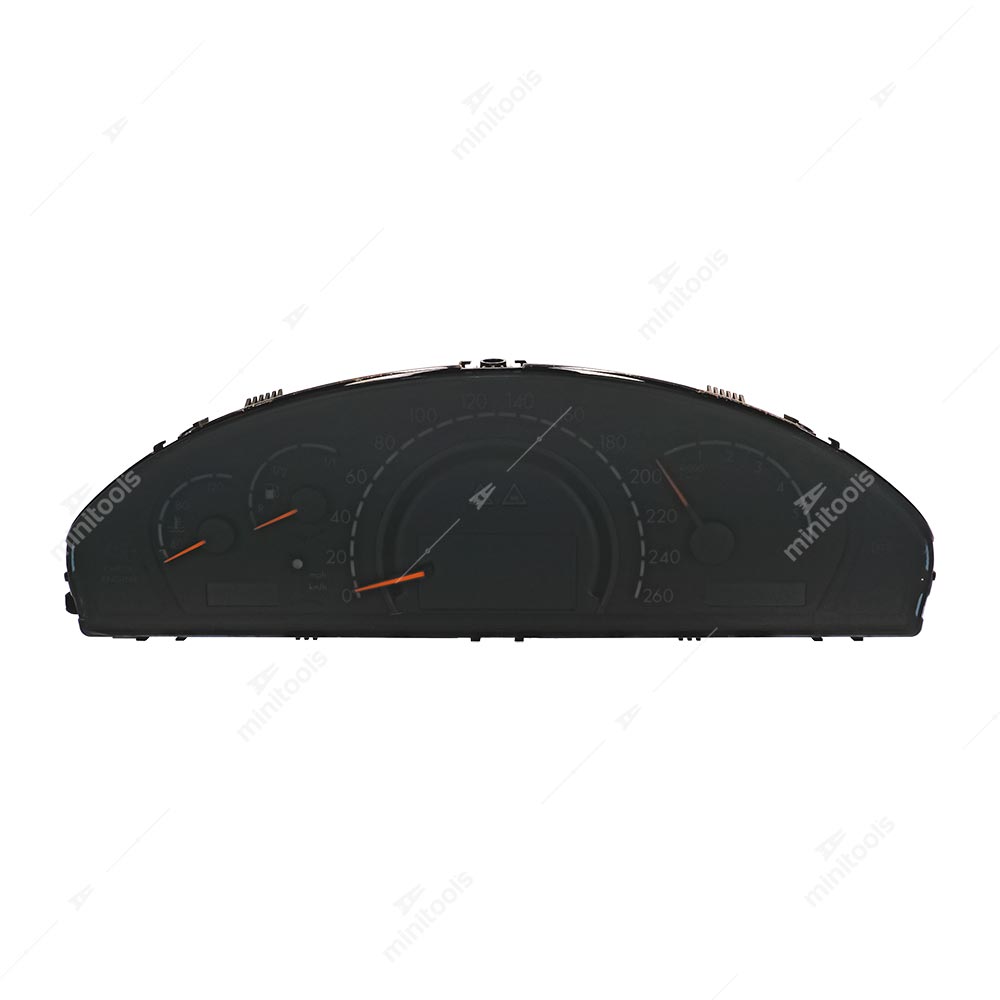

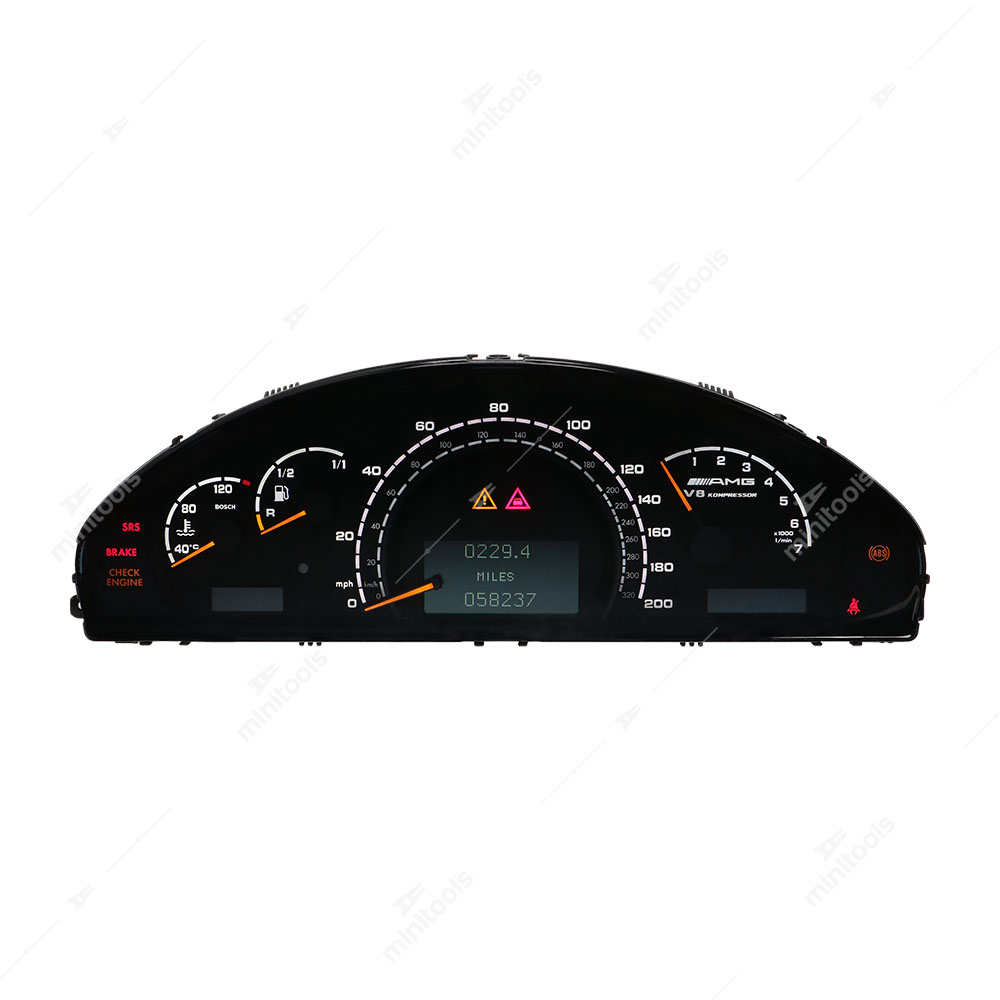

• Mercedes CL-Class C215 (models from 1998 to 2006);
• Mercedes CL-Class C216 (models from 2006 to 2014);

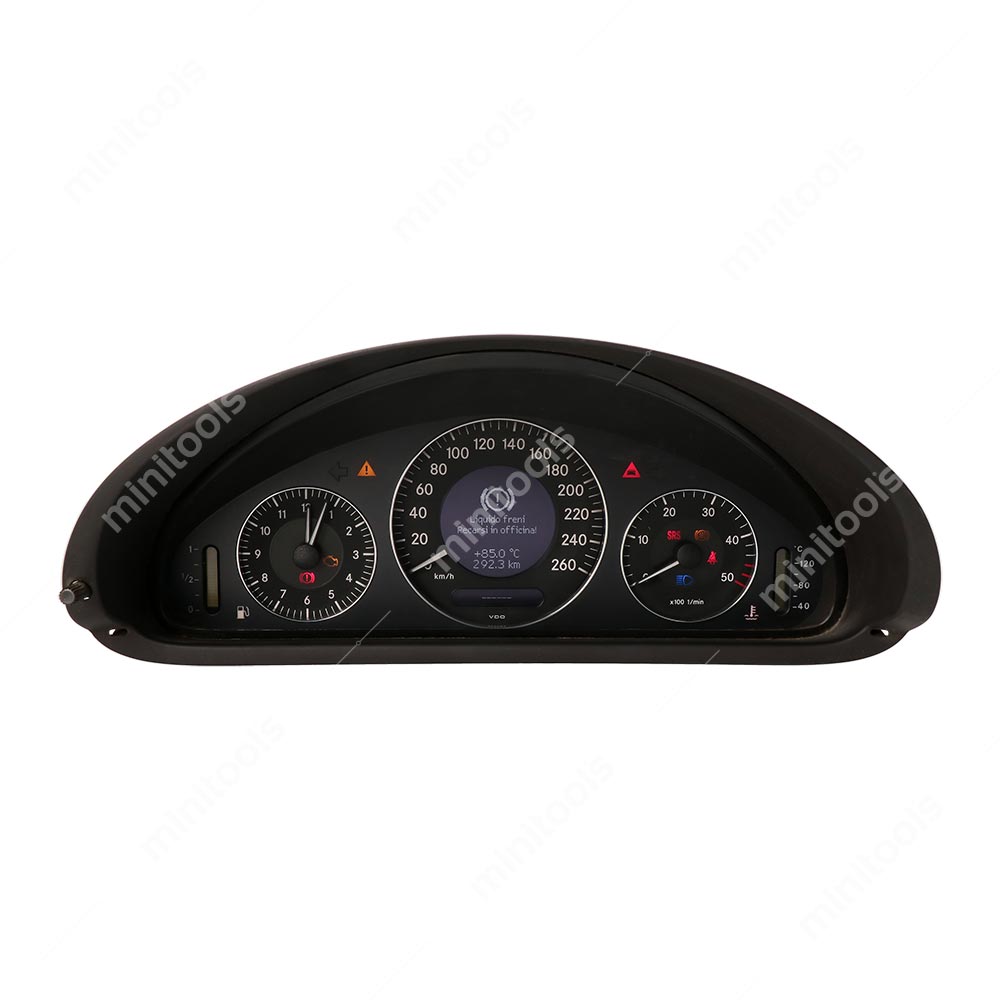

• Mercedes CLK-Class A209 (models from 2003 to 2009);
• Mercedes CLK-Class C209 (models from 2002 to 2009);
• Mercedes CLS-Class C219 (models from 2004 to 2010);
• Mercedes E-Class S211 (models from 2003 to 2009);

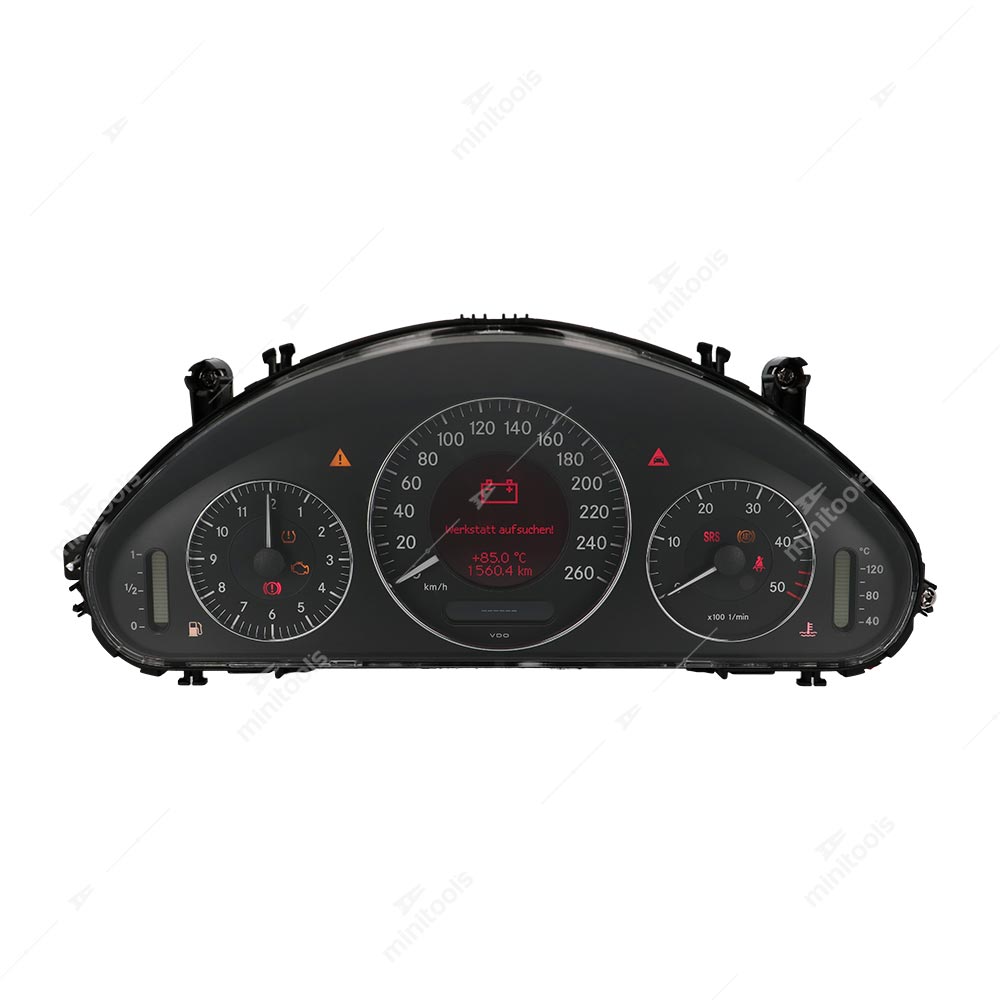

• Mercedes E-Class W211 (models from 2002 to 2009).

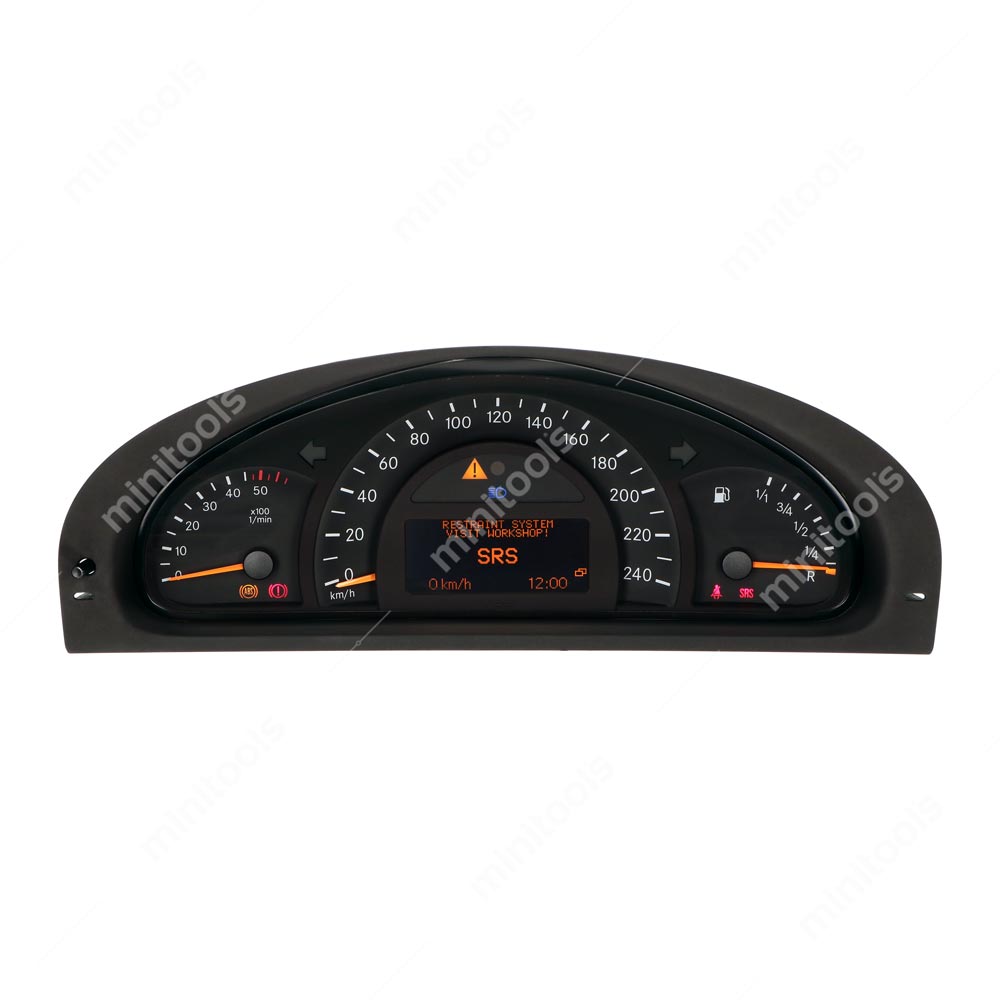

• Mercedes G-Class W463 (models from 2001 to 2012);

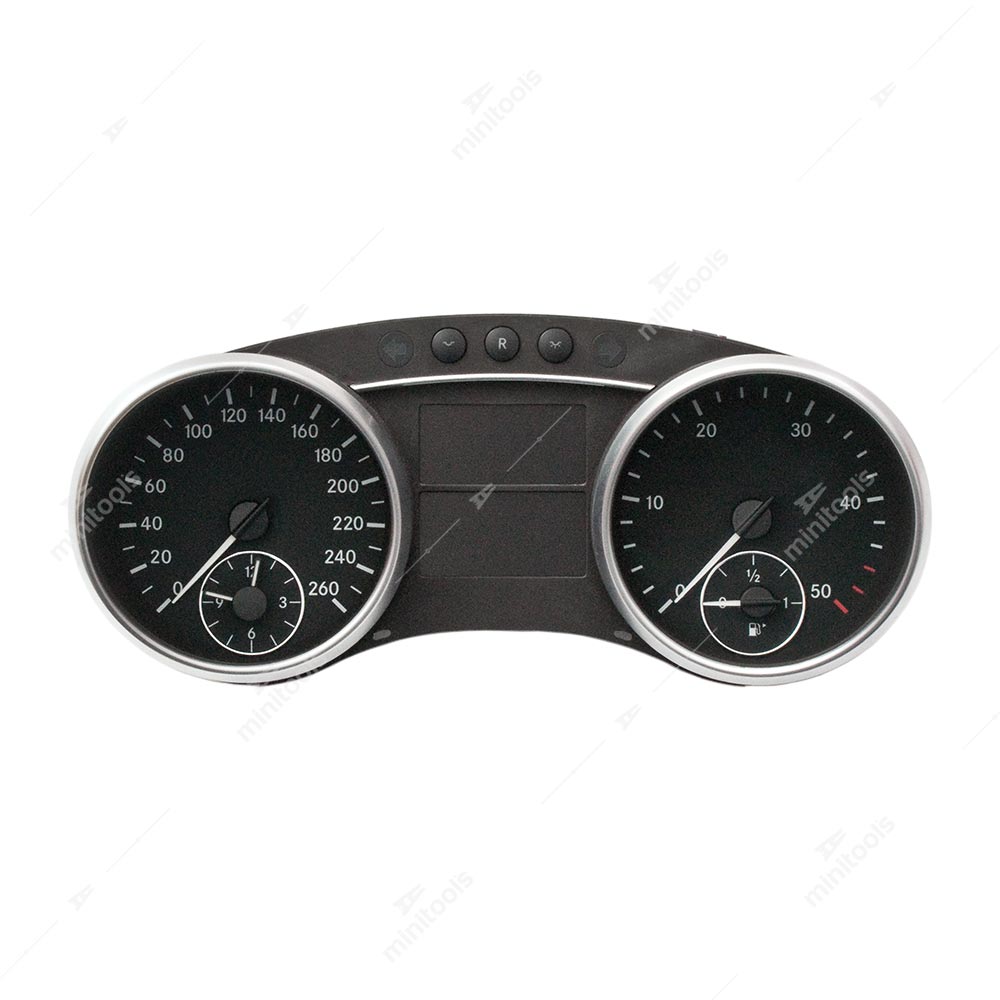

• Mercedes GL-Class X164 (models from 2006 to 2012);
• Mercedes M-Class / ML W164 (models from 2005 to 2011);

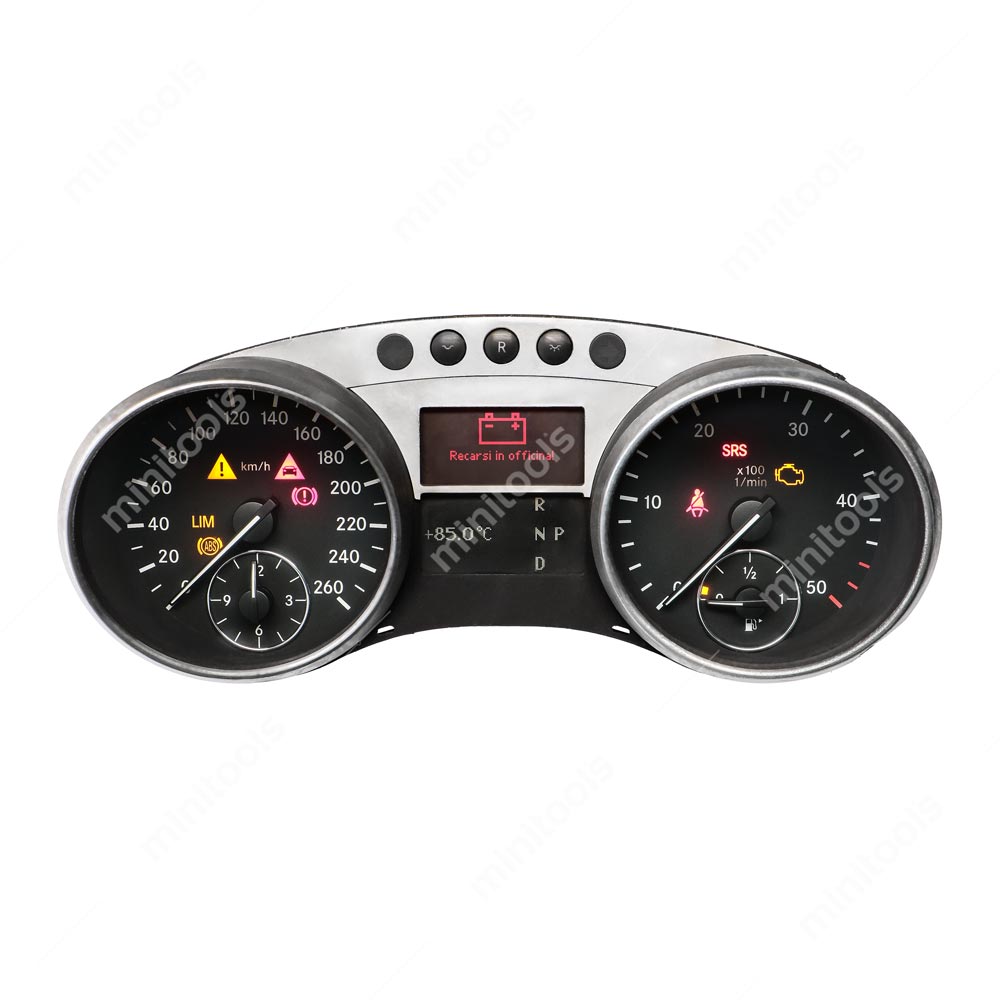

• Mercedes R-Class W251 (models from 2005 to 2017);
• Mercedes S-Class W220 (models from 1998 to 2005);
• Mercedes S-Class W221 (models from 2005 to 2013);
• Mercedes SL-Class R230 (models from 2001 to 2011)
  all versions including: SL 350, SL 500, SL 550, SL 55 AMG, SL 600 and SL 65 AMG;

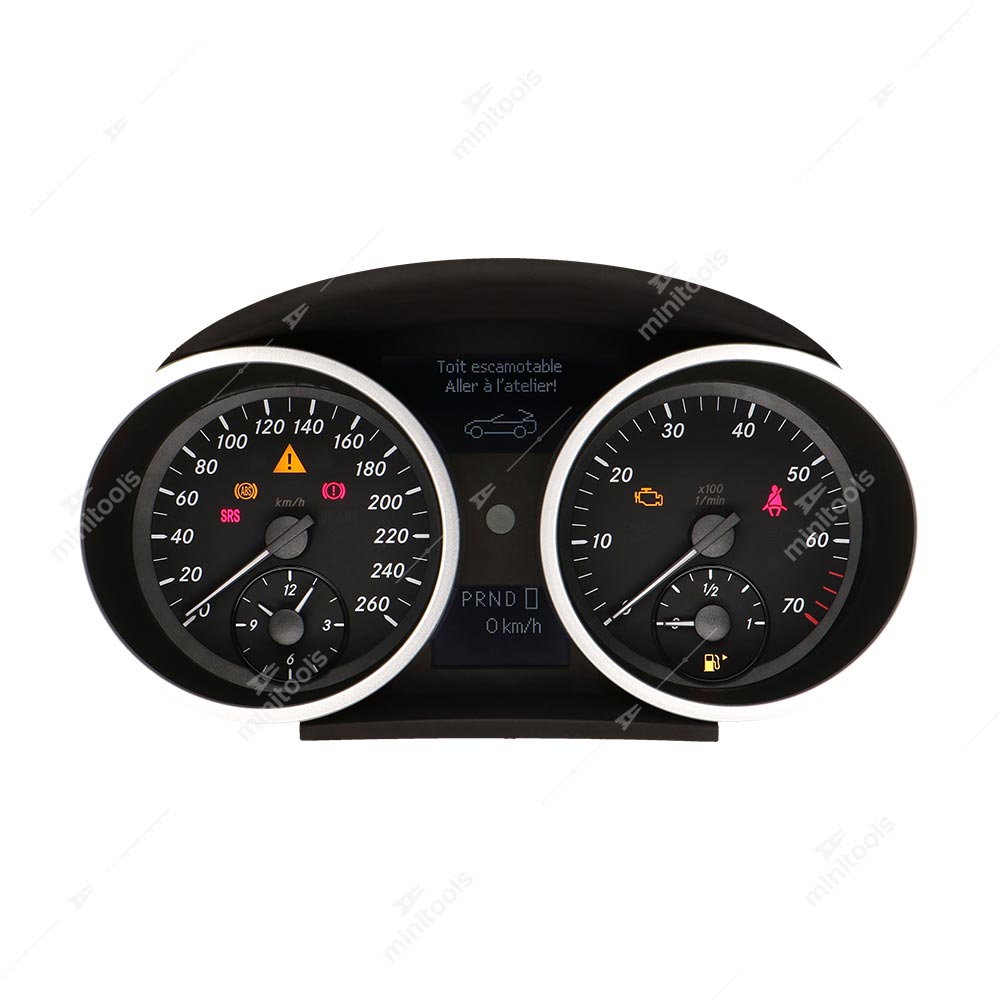

• Mercedes SLK-Class R171 (models from 2004 to 2011);
• Mercedes SLR McLaren (models from 2003 to 2010).

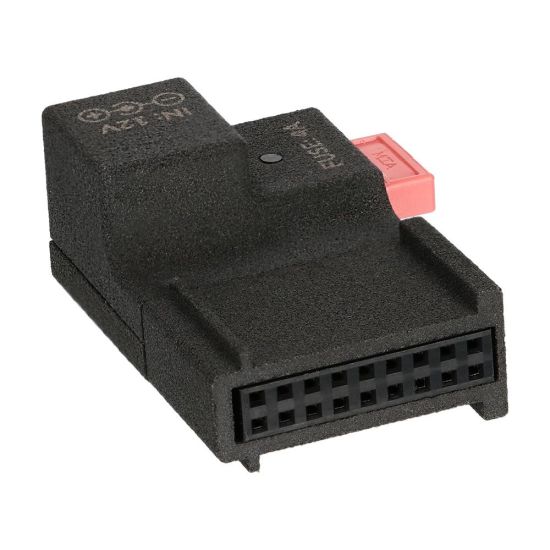

Usage: plug the SEP-PA011 into the connector on the rear side of the instrument cluster and supply 12V power.

TECHNICAL FEATURES:

Power supply voltage: 12VDC (SEI-12V5A-21 12V 5A power supply available separately)

Fuse: 4A
