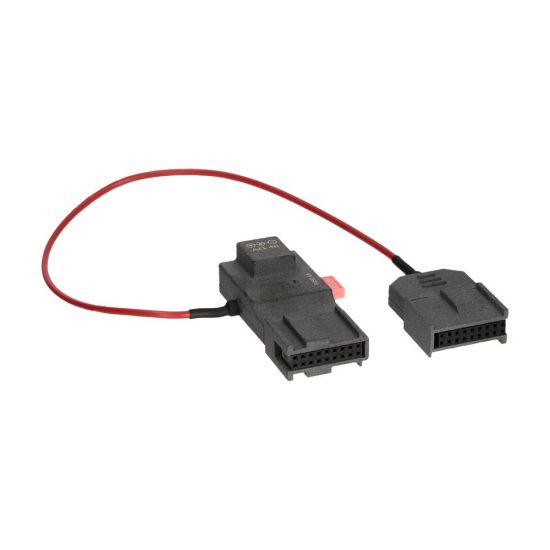

Connectors for powering up BMW 5 Series E39, 7 Series E38, X5 E53 and Range Rover L322 instrument clusters

Connectors for switching on on a test bench several BMW and Land Rover "high" dashboards including:

• BMW 5 Series E39 (models from 1995 yo 2004);
• BMW M5 E39 (models from 1998 to 2003);
• BMW 7 Series E38 (models from 1994 to 2001);
• BMW X5 E53 (models from 1999 to 2006);
• Land Rover Range Rover III (pre-facelift models from 2002 to 2005).

Not suitable for "low" instrument clusters.

Usage: plug the SEP-PA024 into the white and black connectors on the rear side of the instrument cluster and supply 12V power.

Note: to run a needle test, press twice the right button of the instrument cluster, "TEST-NR. 02" will appear on the display, then press once the right button.

TECHNICAL FEATURES:

Power supply voltage: 12VDC (SEI-12V5A-21 12V 5A power supply available separately)

Fuse: 4A
