LCD display for Fiat 500 and Abarth 500, 595, 695 instrument clusters
NEW MINITOOLS DISPLAY AVAILABLE
LCD display for Fiat 500 and Abarth 500, 595, 695 dashboards
Prod. Code: SEPDISP66
87,40 € (VAT excluded)

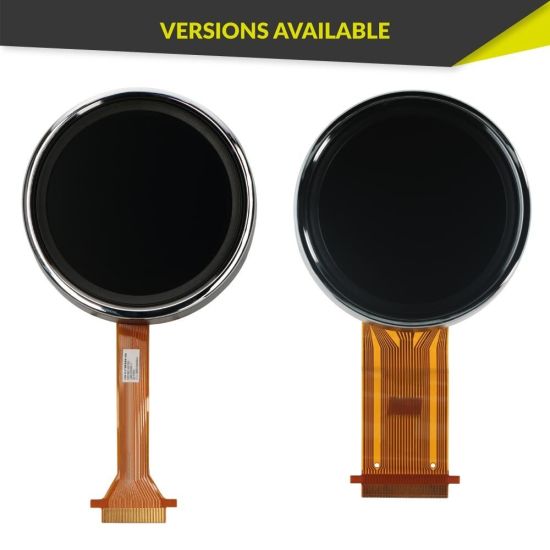

Refurbished monochrome LCD display, with FPC, adaptable to the dashboards of:
- Abarth 500 (models from 2008 to 2014)
all versions including 500C; - Abarth 595 (models from 2011 to 2014)
all versions including 595C, 595 Turismo and 595 Competizione; - Abarth 695 (models from 2009 to 2014)
all versions including 695C and 695 Tributo Ferrari; - Fiat 500 (models from 2007).
To purchase the version adaptable to your instrument panel, select the original code shown on the FPC of the defective display (SEE GALLERY) .
Dimensions: ⌀ 83mm
WARNING!
For certain codes, Minitools SEPDISP66 LCD display is available as well. In case the requested code is not available on both products, please contact us.
| Pin | 22 |
|---|---|
| Source | Refurbished |
| Typology | Monochrome |
| Diameter | ø83 mm |
| Application | Instrument cluster |
| Producer code | COG-VLIT1228A-01 ; COG-VLIT1228B-01 COG-VLIT1229-05 ; COG-VLIT1229A-01 ; COG-VLIT1229B-01 ; COG-VLIT1230A-01 ; COG-VLIT1230B-01 ; COG-VLIT1230B-02 ; COG-VLIT1230B-04 ; COG-VLIT1317-01 ; COG-VLIT1317-03 ; COG-VLIT1317-07 ; COG-VLIT1318-01 ; COG-VLIT1336- |
| Compatible codes | SEI-DISP102V1 ; SEI-DISP102V2 ; SEI-DISP102V3 ; SEI-DISP102V4 ; SEI-DISP102V5 ; SEI-DISP102V6 ; SEI-DISP102V7 ; SEI-DISP102V8 ; SEI-DISP102V9 ; SEI-DISP102V10 ; SEI-DISP102V11 ; SEI-DISP102V12 ; SEI-DISP102V13 ; SEI-DISP102V14 ; SEI-DISP102V15 ; SEI-DISP |
Fiat 500 (2007-2012):
503002123200|735471890 ; 503002123300|735471901
503005214110|735516094 ; 503005212300|735493407
503002120200|735461290 ; 503002121400|735461295
503002128200|735493660 ; 503005210100|735476631
503005211700|735476632 ; 503002123900|735471907
503005214000|735516089 ; 503.002.127/100|735483656
503002124400|735471905 ; 503002122200|735461301
503005216101|735527217 ; 503002127000|735483645
503002127200|735483646 ; 503005214300|735516052
503002128600|735483679 ; 503005211400|735493404
503002124000|735471895 ; 503002124600|735471900
503005190230 ; 735461305 ; 735590735
735516048 ; 735495360
503005211800|735476635 ; 503005216810|735527219
735545858 ; 735516051 ; 735483650
503005211701|735516033 ; 503005190101|735508941
503002127900|735483709 ; 503005216830|735545860
503002124100|735471911 ; 503005216501|735527222
503015214110|735628288 ; 503015214010|735628285
735483711 ; 735476636 ; 735483648
735495361 ; 735516050 ; 735483652
735516055 ; 735516040 ; 735516046
735516047 ; 735516063 ; 735483713
735483651 ; 735476634
503015214108|735624421 ; 503005216030|735545851
503005212301|735516049 ; 503015214107|735590739
735483659 ; 735516034 ; 735508938
503005217030|735545861 ; 503005216520|735545863
503002123800|735471892 ; 503015214008|735624417
503015214806|735590742|77359 ; 735471919
735590741 ; 735628289 ; 735545855
735590740 ; 735527213 ; 735590736
503015190107|735608420 ; 503015214111|735635494
503015215208|735624419 ; 503005190330|735522604
735471916 ; 503005216430|735545854
735624418 ; 735516043 ; 735471904
735527218 ; 503005216301 ; 735545852
735516036|503005215230 ; 735471891|503002123400
735628286 ; 503005216220 ; 735635495
735516035 ; 735493406 ; 503005212200
735516032 ; 503005212701 ; 51800956
735527215 ; 503005216910 ; 735483678
735471903|503002125900 ; 735590735|503002127300
503015214011|735635493 ; 735493392
735624422 ; 503015214308 ; 503015214006
735590737|503015215207 ; 503015214007
503015500109|7356267030 ; 735516094
503005214130 ; 503005214500 ; 735545858
503005216130 ; 735483660 ; 735476633
503015500116|7356492370 ; 503002126300|735471922
503005190300 ; 503005212100|735493405
503015500016|7356492360 ; 503005216001|735527212
050000000001|735471298 ; 503015500107|7356197440
77359 ; 90271 ; 90428
