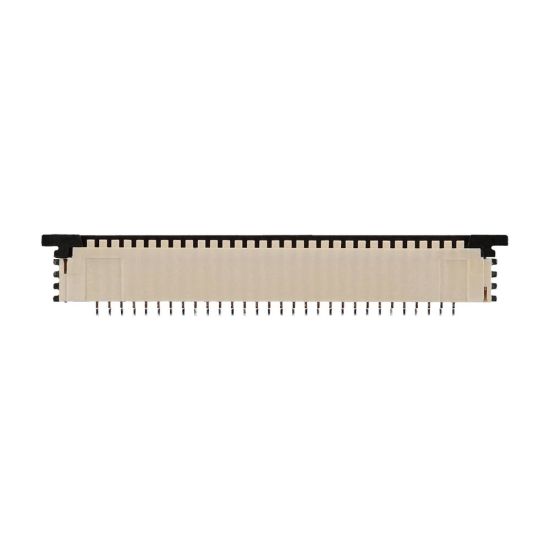

ZIF connector for FFC / FPC – 30 top contacts – 1 mm pitch

Zero Insertion Force ZIF connector for FPC and FFC cables.

Contacts count: 30

Contacts location: top

Contacts pitch: 1 mm

Contacts plating: tin

Mounting angle: right angle

Termination style: SMT

Dimensions: 39.72x6.55x2.56mm

Some applications:

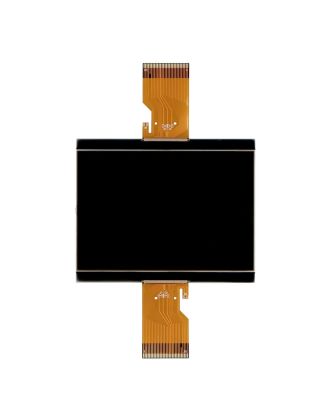

instrument clusters of:

• DAF CF65 (models from 2002 to 2013)
  all versions including CF65.220; CF65.250; CF65.280 and CF65.300;
• DAF CF75 (models from 2002 to 2013)
  all versions including CF75.250, CF75.310, CF75.360;
• DAF CF85 (models from 2002 to 2013)
  all versions including CF85.340, CF85.360, CF85.380, CF85.410, CF85.430, CF85.460, CF85.480, CF85.510;
• DAF LF45 (models from 2002 to 2013)
  all versions including LF45.140, LF45.150, LF45.160, LF45.170, LF45.180, LF45.210, LF45.220,
• DAF LF55 (models from 2002 to 2013)
  all versions including LF55.180, LF55.210, LF55.220, LF55.250, LF55.280, LF55.300.
• DAF XF95 (models from 2002 to 2013)
  all versions including XF95.380, XF95.430, XF95.480, XF95.530,
• DAF XF105 (models from 2002 to 2013)
  all versions including XF105.410, XF105.460, XF105.510;
• Temsa MD7 Plus (models until 2020);
• Temsa MD9 (models until 2020).
